SPECIFICATION
Size | 5.0 in (12.7 cm) L x 2.8 in (7.1 cm) W x 1.35 in (3.4 cm) H |
Weight | 6.5 ounces (185 grams) |
Input | < ± 2 Volts |
OutPut | USB Cable |
Sample Rate | 50, 100 and 200 Samples per second |
File Limit | During Sleep Mode (Main Power Battery Switch ON, unit OFF) : 8 – 10mA Panel key pad is energized and unit is in standby mode. During Normal Operations : 108mA Unit is operating in remote or computer mode Computer USB Battery Charge : 100mA Operating in computer mode and receiving 100mA current from USB port reduces battery drain rate to 8mA Battery Charge from AC/DC Charger : 280mA Charge battery with Main ON, OFF, or during operations |
제품 구성품
- PGA-710B Autoanalyzer
- PGA-710 USB Cable
- PGA-710 Analog Cable
- PGA-710 Charge Generation Lead
- PGA-710CC Input Shorting Shunt
- Custom Carrying Case
- PFA-861-H-Hand Wand
- PGA-710 Application Software
- User Manual
- How to Measure Manual
OPTIONAL

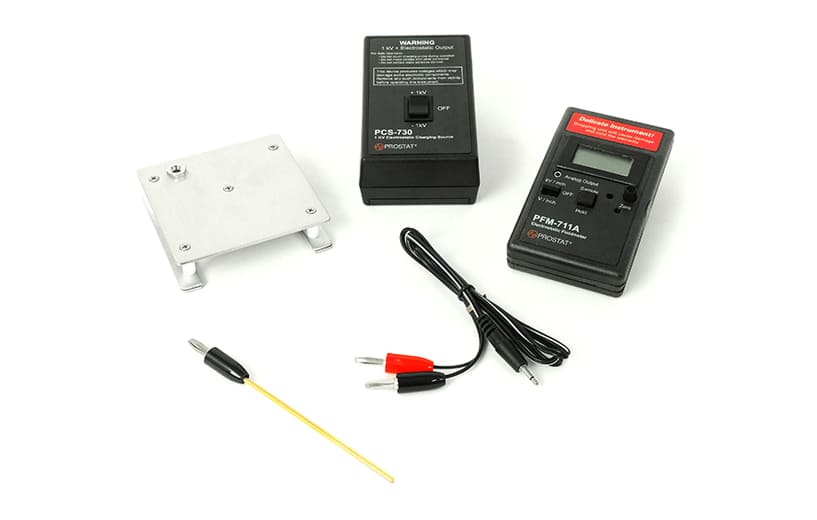

PFK-100 Electrostatic Field Meter Set
Measure Electrostatic Fields, Ionizer Balance and Body Voltage Testing
