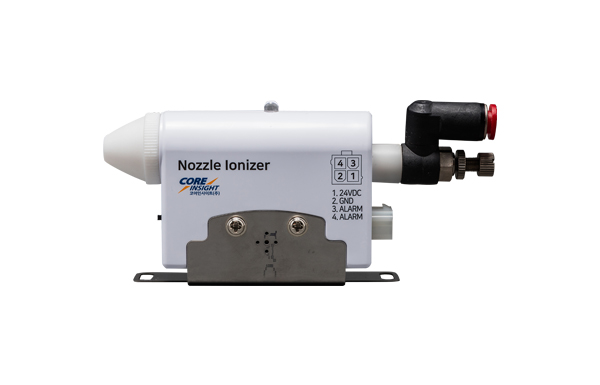

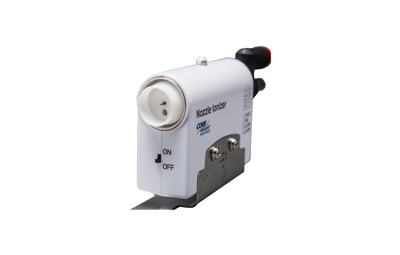

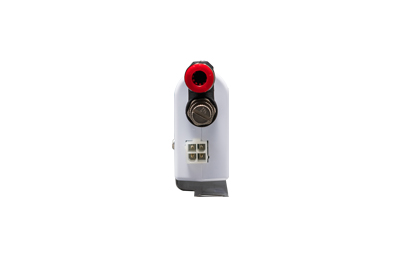

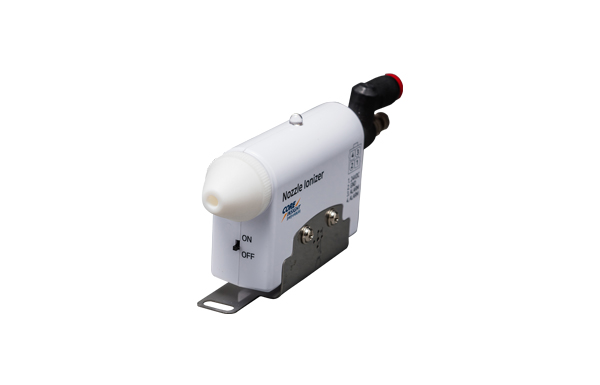

Model 4110
High Frequency AC Nozzle Ionizer
FEATURES
- 안정적인 이온 밸런스
- 강력한 제전 성능
- LED & Audio 알람을 통한 동작 확인 편의성 제공
- 방전침 교체와 유지보수 편의성
- 노즐 변경을 통해 좁고 깊은 공간 적용 가능
- 모니터링(FMS) 시스템 적용
- High Frequency AC Ion Emission
- Compact Size
- Audio & Visual LED Alarms
- Emitter Point Easy Clean and Replace
- Facility Monitoring System (FMS) Interface
- Air Tube Nozzle Option (Model 4110U)
SPECIFICATION
| Input Voltage | 24 VDC, 2.2 W Max. |
| Ion Emission | High Frequency AC (70 kHz) |
| Balance | Average ≤±10 V, Max ≤±30 V |

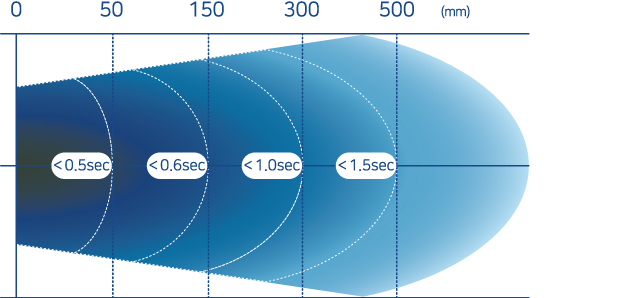

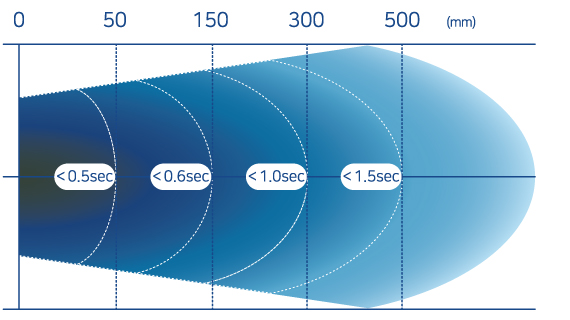

| Discharge Time | ±1000 V to ±100 V less than 1 sec (15cm)
|
| Emitter Points | Tungsten 99.99% |
| Alarm | Visual & Audio alarm operate for power failures |
| Monitoring | FMS monitoring interface |
| Air Pressure | 0.1 - 0.5 Mpa |
| Air Inlet | 6mm Inlet |
| Material |
|
| Dimensions (mm) |
|
| Weight | 90g (with bracket) |
| Warranty | 1 year limited warranty |

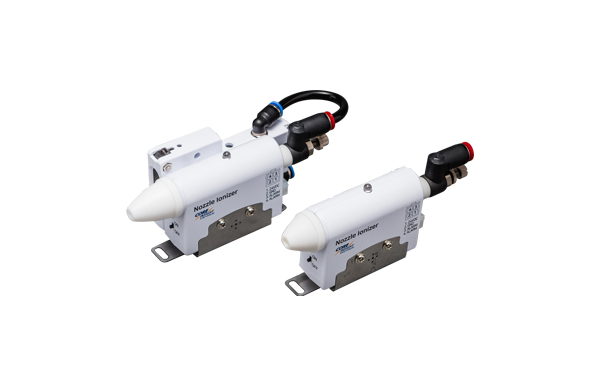

Controller
- Model 4111
- IR Sensor Remote Control Air Pressure for Model 4110

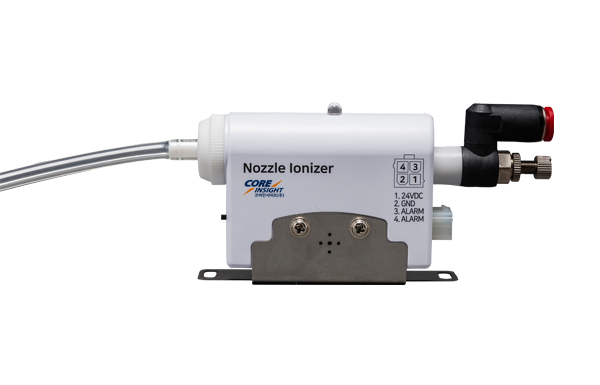

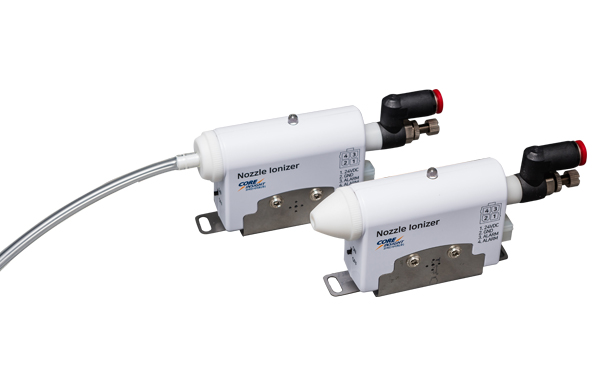

- Model 4110U
- Nozzle Head Assembly with Uretha Air Tube
