EM Aware

ESD Event Cotinuous Monitor

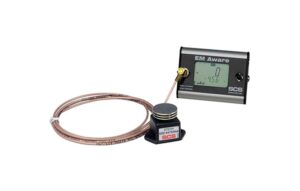

EM Aware-1 1EM Aware-1 1

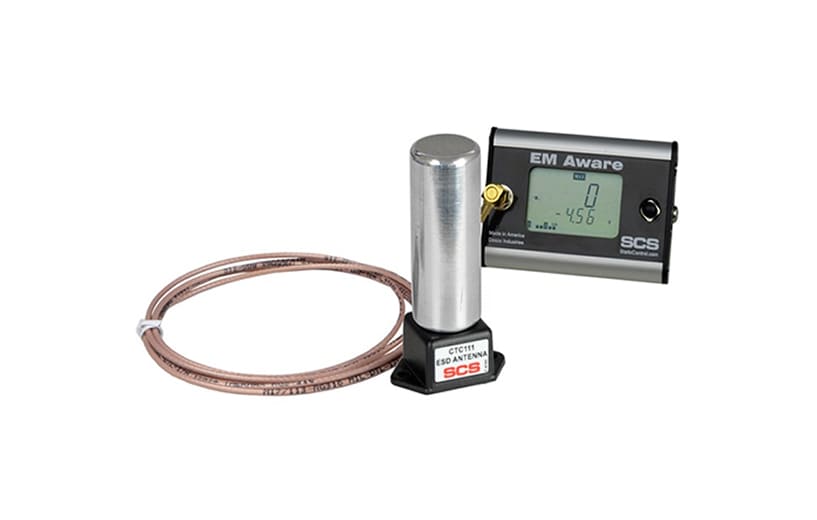

EM Aware-2 1EM Aware-2 1
정전기방전(ESD)이 발생하면 함께 동일한 주파수 대역의 RF 신호를 발생시킵니다.
ESD Event Detection은 이 신호를 통해 ESD 발생 유무를 확인할 수 있습니다.
EM Aware는 PC를 통해 데이터 수집 및 모니터링에 적합하도록 설계된 제품입니다.
Trigger 조절을 통해 방전 수준 조절이 가능합니다.
ESD Auditor 사용 추천

video

FEATURES

BENEFITS

SPECIFICATION

General
Audio Indicators
Speaker: Beep or analog audio with selectable volume
External Data Storage
microSD Card
Display
Touch LCD
Size
65W x 32 D x 105 L mm
Headphone Jack
3.5 mm *1/8 in.)
Power Supply/Charger
Input: 100-240 VAC, 50-60 Hz
Output: 5.0V 1000mA
Plug: Center positive 1.3 mm I.D. x 3.5 mm O.D.
Country of Origin
United States of America
ESD Event Sensor
ESD Event Detection Characterization Modes
Raw input for magnitude and estimated CDM, HBM, MM using proprietary algorithm
Raw Input Resolution
1 Mv (1 Mv to 15 mV);
15 mV (15 mV to 1500 Mv)
Detection Resolution: 1 mV
Threshold (Display) Resolution
1 to 10 V, 10 to 990 V
Raw input: 1 mV (1 to 15 mV)
and 15 mV (15 to 1500 Mv)
Distance Detection Range
1.3 cm (0.5 in.) – 38.1 cm (15.0 in.)
Event Detection Rate
3,000 per second
Counter Range
0 to 32,767 counts (screen count)
Hardware Setup
Adjustable Brightness, Auto-off-time
CTC115 Remote Antenna Temperature Range
-100 to 400˚F (-73 to 204˚C)
