SPECIFICATION
Power | Voltage: 90-260VAC, 50/60Hz; 0.75 Amps max Input: IEC Socket with 6’ (2m) cable with NA plug (Std) |
High Voltage Power Supply
| Adjustable ±800-±1,200V
|

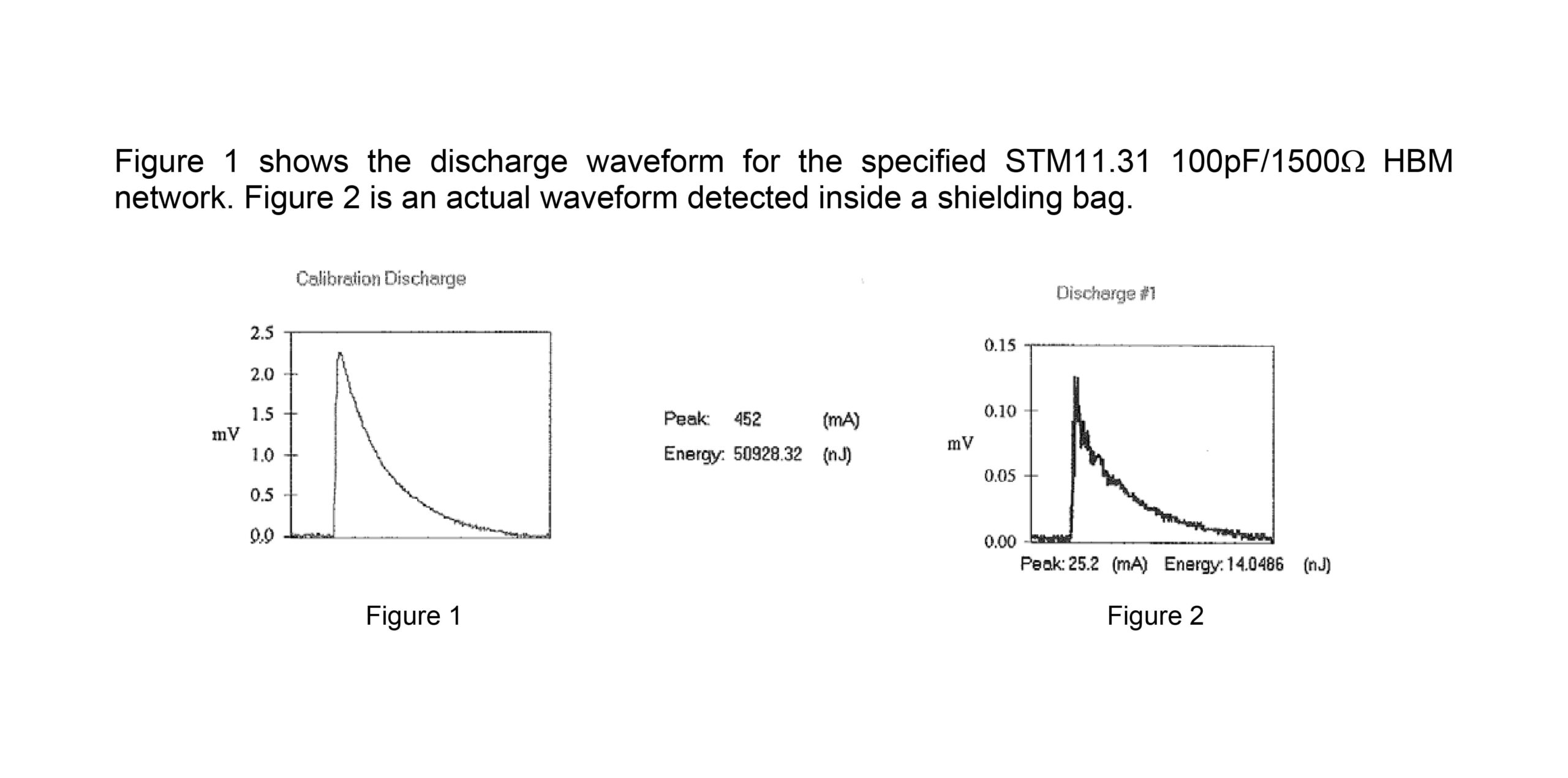

Discharge Network
| STM11.31: 100pF & 1500Ω
|
Signal Output
| Current output: Tektronix CT-1: 5mV/mA @ 500Ω:
|
Capacitive Sensor
| Electrodes: 0.875” (22mm) stainless steel Dielectric: 0.5” (12mm) Capacitance: 6pF
|
Dimensions | 4”W x 12”D x 6”H (102x305x152mm)
|
제품 구성품

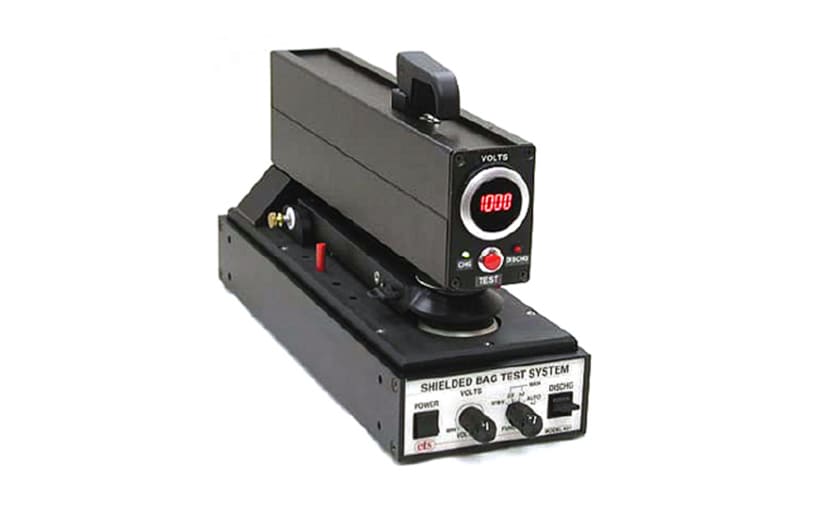

- Model 4431T Shielding Bag Tester
- Oscilloscope, Tektronix TDS2022C or compatible
- Computer: Laptop, Windows XP, VISTA
