SPECIFICATION
Measuring Range | 0.01 Ω to 9.99 x 1012 Ω |
Measurement Modes | Auto, Manual and Continuous |
Display | 69.8 mm x 30.5 mm (2.75” x 1.20″) 6 digit – 7 segment TN display |
Battery Power | One 9V Alkaline Transistor Battery |
Battery Life | > 50 hours |
Operating Temperature | 18°C to 32°C (65°F to 90°F) |
Operating Relative Humidity | 10% – 60%, non-condensing |
Operating Altitude | 2000 m |
Dimensions (WxHxD) | 109 mm x 184 mm x 36 mm 4.30 in x 7.25 in x 1.40 in |
Weight | 375 g (13.2 oz) |
Case Material | ABS Plastic with Rubber Side Grips |
Color | Grey |
Warranty | 1 Year Limited Warranty |

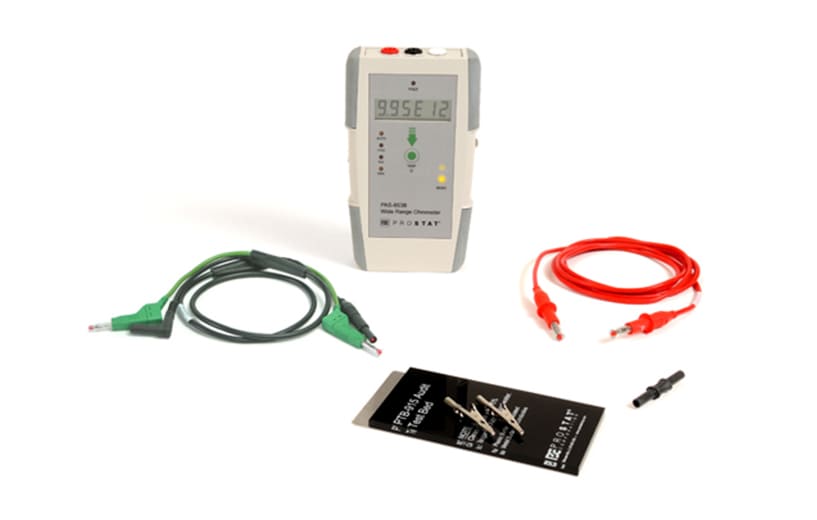

제품 구성품
- PAS-853B Wide Range Ohmmeter
- 800LB 10 foot Silicone Test Lead - Black
- 800LR 10 foot Silicone Test Lead - Red
- PRS-801SSL Shielded Test Lead
- PTB-915 Audit Test Bed
- PSI-870MAC Alligator Clip (2)
- PRS-801BC Bulldog Clip
- 800S Test Lead Shunt
