Model 4800

High Frequency AC Nozzle Ionizer

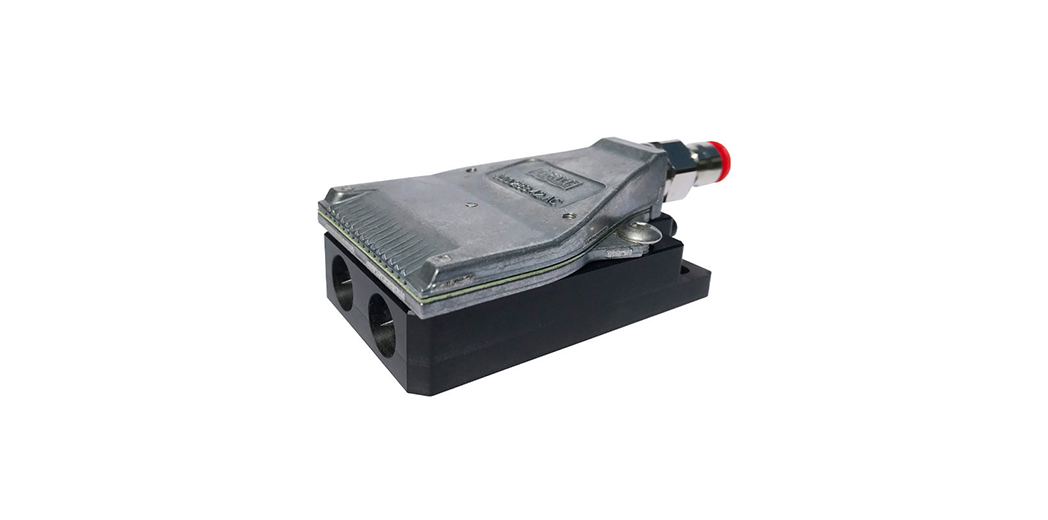

Model 4800-1Model 4800-1

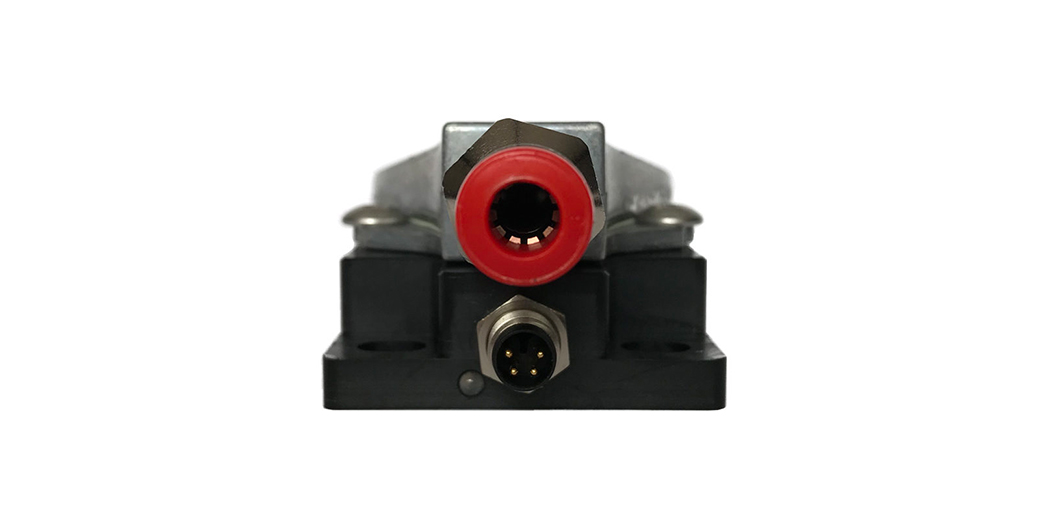

Model 4800-2Model 4800-2

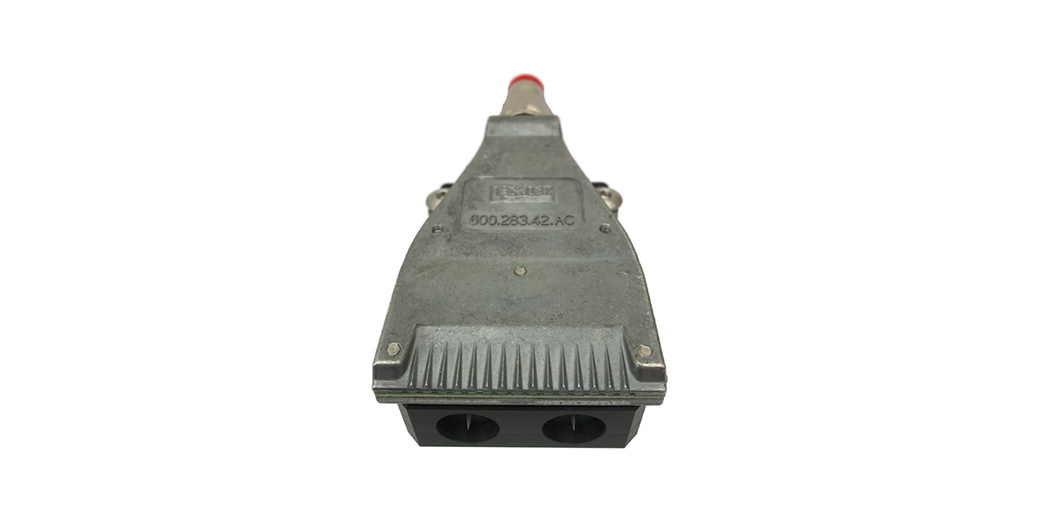

Model 4800-3Model 4800-3
Fraser사의 Model 4800 DC Nozzle 타입 이오나이저는 강력한 성능과 컴팩트한 본체에 통합된 첨단 전자 장치의 모든 이점을 통해 산업용 정전 제어 기술의 새로운 기준을 제시합니다. Model 4800 DC는 24V DC로 구동되며, 강력한 출력의 노즐 이오나이저입니다. 경쟁 제품보다 더 빠르게 정전을 중화하며 인기 있는 Model 4510 이온화 공기 노즐보다 약 50% 더 강력합니다.

플랫 노즐은 강렬한 공기 흐름을 생성하여 최적의 세척 및 이물 제거시 고속으로 제전이 가능하게 합니다. 낮은 공기압에서 높은 세정 성능을 달성하여 공기 소비량과 소음을 줄입니다. 최대 압력을 위해 근거리에서 사용시 – 최적의 세정 거리는 일반적으로 50~100mm입니다.

video

FEATURES

BENEFITS

SPECIFICATION

Construction
Static Eliminator: PVC body, epoxy resin encapsulant, tungsten emitters.
Nozzle: aluminium.
Dimensions
80 x 51 x 33 mm (L x W x D) excluding connectors.
Operational Length: 47 mm.
Weight
Static Eliminator – 100 g, Nozzle – 60 g (excluding connectors).
Output Voltage
+/- 7 kV supply integrated inside Ioniser.
Remote Monitor / Local Status Indication
Signals available: ‘OK’, ‘Clean Me’, ‘Fault’ and ‘Standby’. Uses 24 V supply to send signal from the ioniser to the PLC or other destination. Outputs compatible with IEC 61131-2 Type 3 PLC inputs. Signal protected against short circuit or miswiring. Bi-colour LED on ioniser body for local status indication.
Electrical Input
24 V DC (21 – 28 V). Maximum current 0.25 A. M8 connector.
For PSU and cable options, see 3024 UC Datasheet.
Air Supply
Air Pressure: Max 10 Bar.
Air Fitting: 6 mm OD push fit.
Air Consumption: 300 l/min @ 2 Bar.
Blowing Force: 2.4 N @ 2 Bar.
Environmental
0 – 55 °C, 70 % rH non-condensing max. IP67.
Certification
CE and UL Certified (3024 Ultra-Compact incorporated within 4800 DC).
