SPECIFICATION

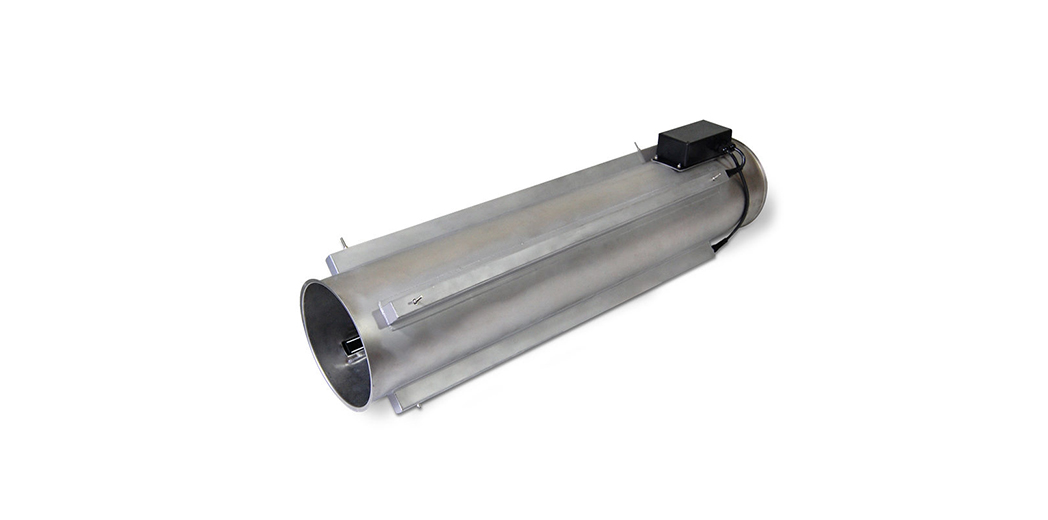

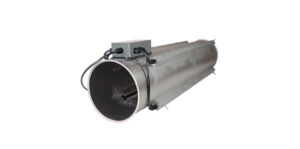

Construction | The Iontube consists of Fraser 1250 Static Eliminators mounted into housings welded around the circumference of a stainless steel tube. The welding is airtight. See Datasheet for pipe sizes. |
Dimensions | Standard DIN pipe sizes with outside diameters of 50 mm, 80 mm and 100 mm, then in 50 mm increments to 350 mm. Other sizes and diameters are available. |
Cable | 2 m of HT cable is standard, unless otherwise specified. This determines the distance between the Iontube and the power unit. |
Power Unit | Used with a Fraser HP Power Unit which converts the mains voltage to approx. 5.5 kV. It is current-limited with a maximum current output of 5 mA for safety.v |
Certification | CE. |
