Charge Plate Monitor

scroll down

Model 256

Model 156A Charge Plate Monitor

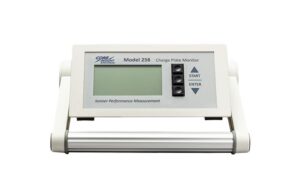

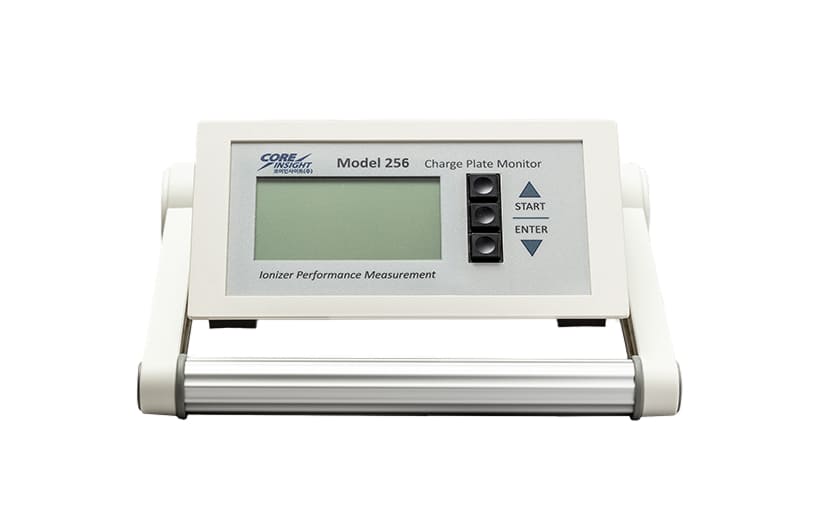

Model 156-1Model 156-1

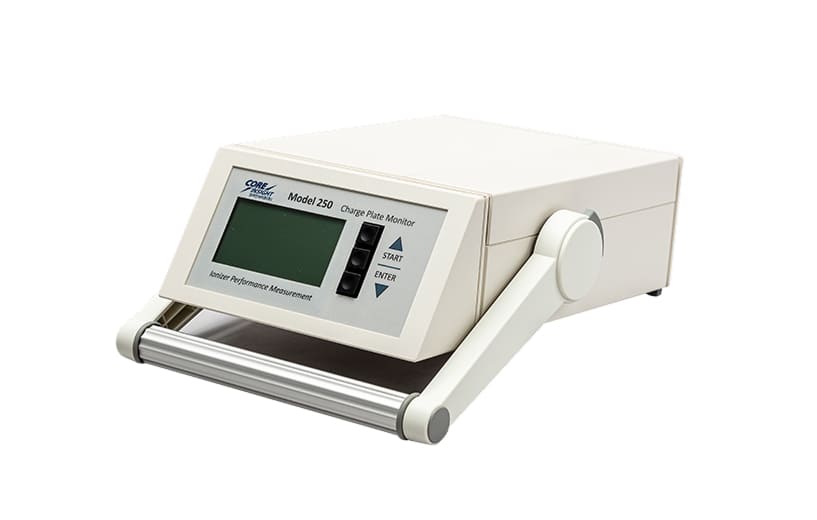

Model 156-2Model 156-2

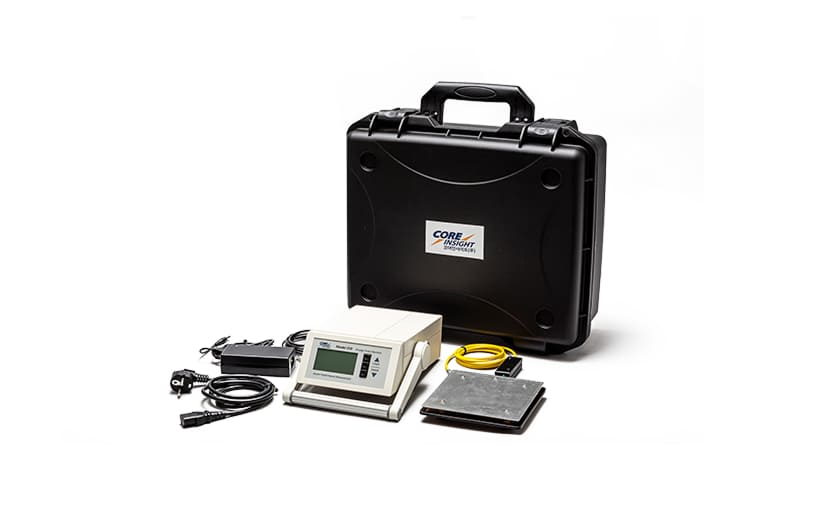

Model 156-3Model 156-3
Model 256은 ANSI/ESD S20.20 표준과 같은 고급 ESD 제어 프로그램을 위한 정확한 이온화 시스템 측정 및 평가를 제공하도록 설계되었습니다.
저전압 측정을 위한 전압 추종 기술로 알려진 혁신적인 고전압 전위계를 채택했습니다.
룸 이온화 시스템, 블로워, 건/노즐 및 바 타입을 포함한 모든 이오나이저를 테스트할 수 있습니다.
Model 256 CPM은 DC, AC 및 펄스 AC 이오나이저를 테스트하는 가장 빠른 정밀 차지 플레이트 모니터입니다.
Model 256은 1볼트 해상도와 극도로 낮은 오프셋 및 드리프트로 높은 정확도를 제공합니다.
시작 및 정지 전압은 5볼트 단위로 프로그래밍 가능합니다.
Model 256은 소형 경량으로 단독 규정 준수 검증이 가능하며, 1시간 충전으로 8시간 이상 배터리 사용이 가능합니다.

video

FEATURES

BENEFITS

SPECIFICATION

Monitored Voltage Range
0 to ± 1050V DC or peak AC
Bandwidth
DC to 200 Hz (Measured at 2 kVp-p, -3dB)
Timer
0.1 to 999.9 seconds in 0.1 sec increments
Start Voltage
Programmable from ±10 V to ±1000 V by 5 V resolution
Stop Voltage
Programmable from ±5 V to ±995 V by 5 V resolution
Display
40 H x 70 L mm LCD Screen
Balance Delay
0 to 30 seconds (Adjustable in 1 second)
Power Requirement
24V DC
Battery Operation
NiMH 7.2 V 3 Ah (Internal)
Monitor Output
1:200(1V = 200V at Plate)
CPM Connection
0S.650 – 1 Triax (50 ohm)
Capacitance
20 pF ±2 Pf
Operating Condition
Temperature: 15 – 35℃, Humidity: 35 – 75% RH
Enclosure
ABS plastic
Dimensions(mm)
74 H x 190 W x 248 D mm
Warranty
1 year limited warranty
Weight
1.5 kg
