SPECIFICATION
Display | 240 x 64 character/graphic Voltage :3½ digit display (Decay and Peak reading) Accuracy : ±0.1% of reading ±3 lsd Resolution : 1 volt for readings > 99 volts / 0.1 volt for readings < 100 volts Time : 4 digit display Accuracy : ±0.1% of reading ±3 lsd Resolution : 0.1 second for readings < 1000 seconds / 1 second for reading > 999 seconds |
Electrometer | Dynamic Range : ± 1200 volts Speed of Response : < 10 msec for 1 kV to 0 volts (90%10%) Bandwith : 3db @ 1Khz 20Vpp, 3db @ 10Hz 2000Vpp |
Charge Plate | Capacitance : 20pF ± 10% Zero Drift : < 100 mV/sec ( no incident ion Flow) Self Discharge : < 200mV/sec |
Size | 11″ x 9″ x 6″ (280 x 229 x 152mm) |
Weight | 12½lb. (5.7kg) |
제품 구성품

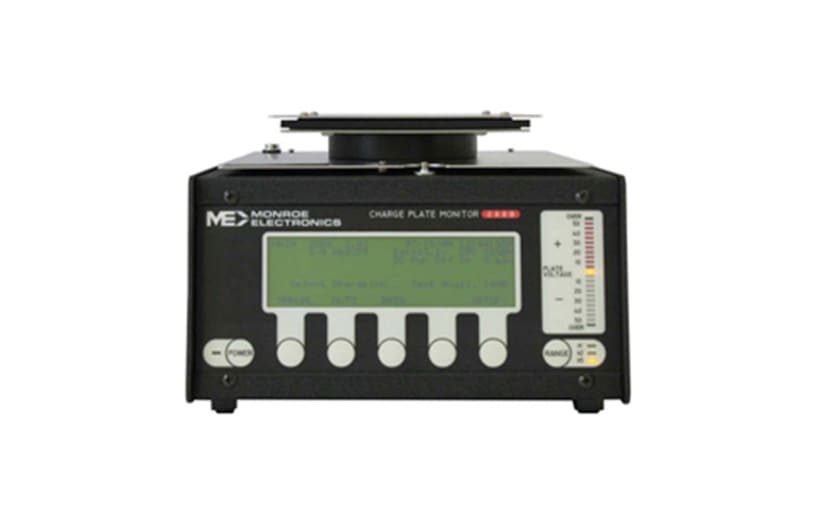

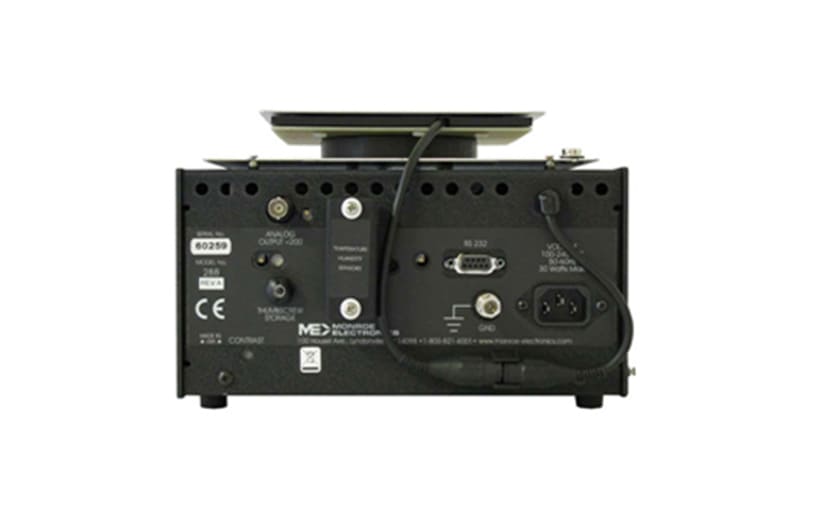

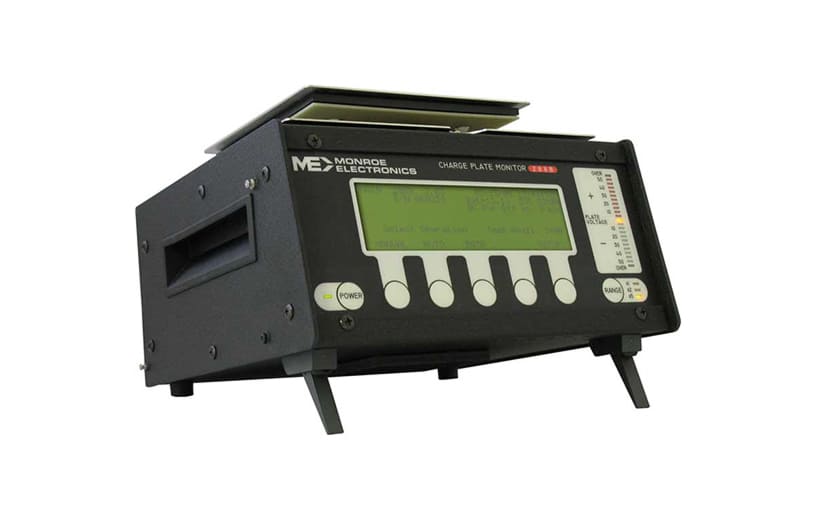

- Model 288 Charge Plate Analyzer
- Optional : Carrying Case, 1" x 1" Plate, KEY Soft Ware
