SPECIFICATION
Sensitivity | 1..1000 V |
Threshold | Adjustable |
Discharge Polarity | Both |
Event Count | 4-digit counter |
Event Magnitude | LED bar |
ESD Event Indication | LED bar, buzzer |
EMI Event Rejection | CDM mode select; all events select |
Power | 9 V alkaline battery |
Dimensions | without antenna: (H x W x D) 4.73″ x 2.56″ x 0.9 (12 x 6.5 x 2.3 cm) with antenna: (H x W x D) 6.82″ x 2.56″ x 0.9 (17.3 x 6.5 x 2.3 cm) |
제품 구성품

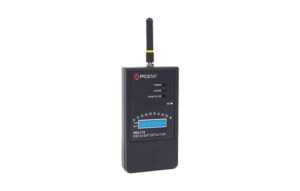

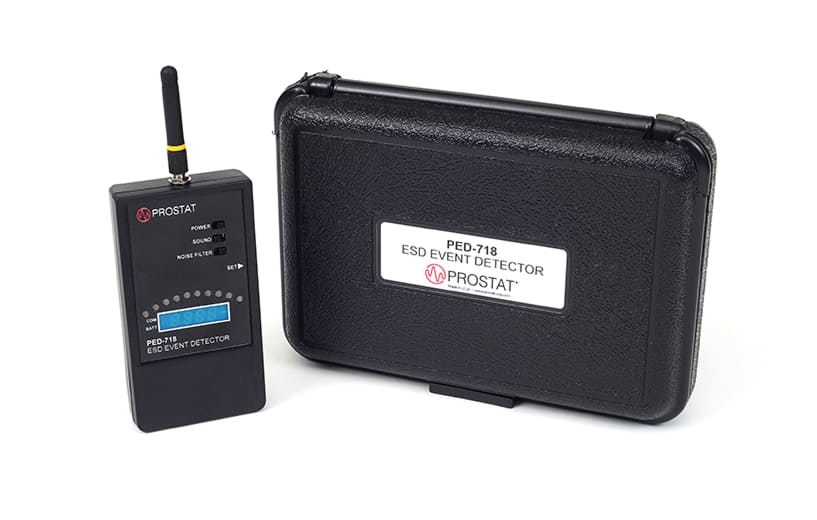

- PED-718 ESD Event Detctor

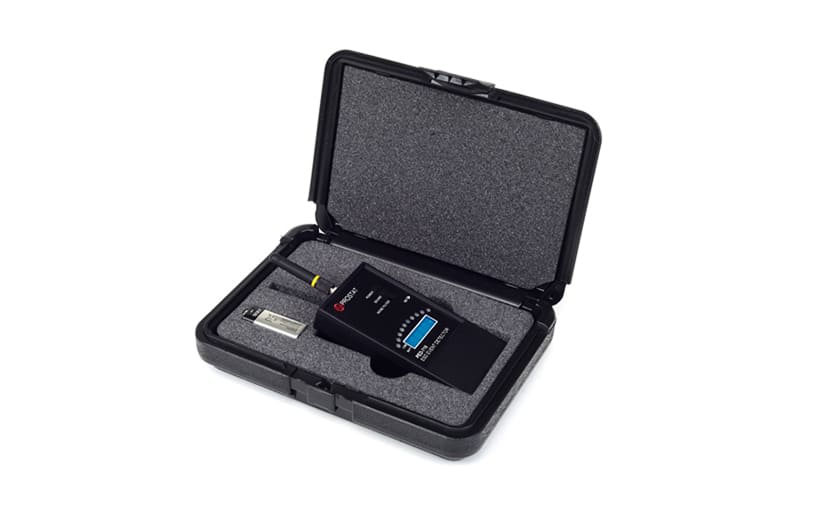

- Carrying Case
