SPECIFICATION
PFM-711B Field Meter | |
Display | 3-1/2 digit Liquid Crystal Display with 0.4″ digit height. Automatic polarity, HOLD and LOW BATTERY indicators. |
Range | High Range 0 V to ± 19.99 KV; least significant digit indicates 10 volt at one inch distance. Low Range 0 V to ± 1,999 V; least significant digit indicates 1 volt at one inch distance. Measures higher voltages at greater distances, e.g., at two inches double indicated voltage, at four inches multiply indicated voltage by four. |
Accuracy & Enviroment | ± 5% at ambient conditions ( 23ºC and 30% Rh). ± 5% at 0 – 50ºC and 0 – 85% Rh (non-condensing). Accuracy unaffected by the presence of air ionization. |
Dimensions | 27.2 mm x 61.5 mm x 105.9 mm. |
PCS-730B Charging Source | |
Input Power | 9 Volt Alkaline Battery. Battery life in excess of 40 hours continuous operation. |
OutPut | ± 1,000 volts DC Minimum, Current limited to less than 1 Microamp. Female banana jack provided with mating contact rod. |
Dimensions | 28.5 mm H x 61.2 mm W x 126.5 mm. |

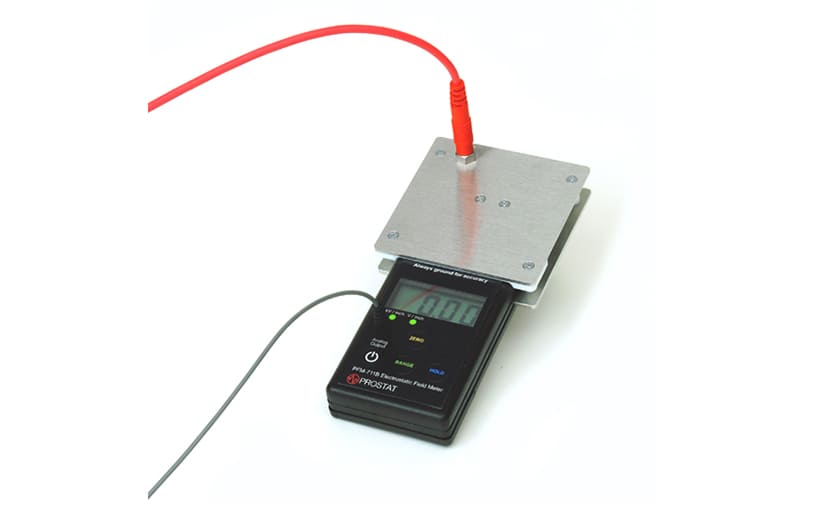

CPM-720B Charge Plate Assembly | |
Isolated Plate | Stainless Steel parallel plates, 3.25 inches square. Auxiliary female jack installed. |
Capacitance | Plate Capacitance 19 picofarads (pF) ± 1 pF |
Range | 0 to ± 5 kV ±2%. |
Accuracy | ± 5% at 1,000 volts. Calibration adjustment screw provided. |
Dimensions | 82.5 mm x 82.5 mm x 17.5 mm. |

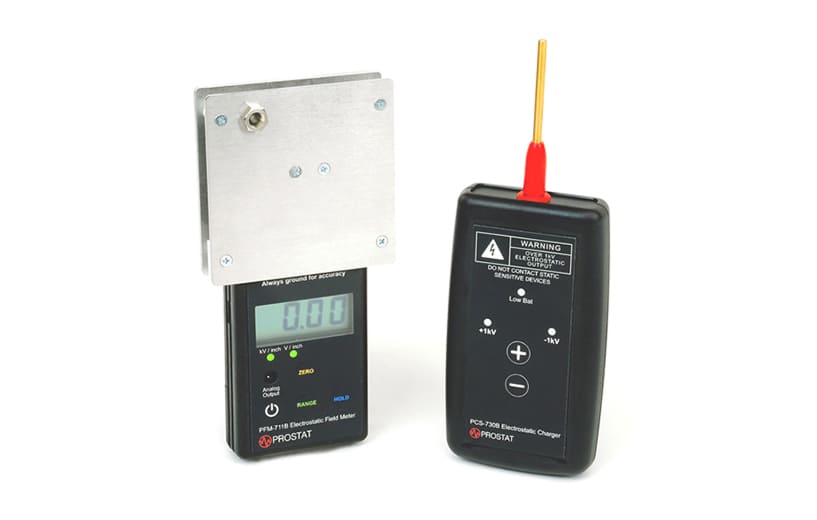

제품 구성품
- PFM-711B Electrostatic Field Meter
- CPM-720B Charge Plate Assembly
- PCS-730B ± 1kV Charging Source
OPTIONAL

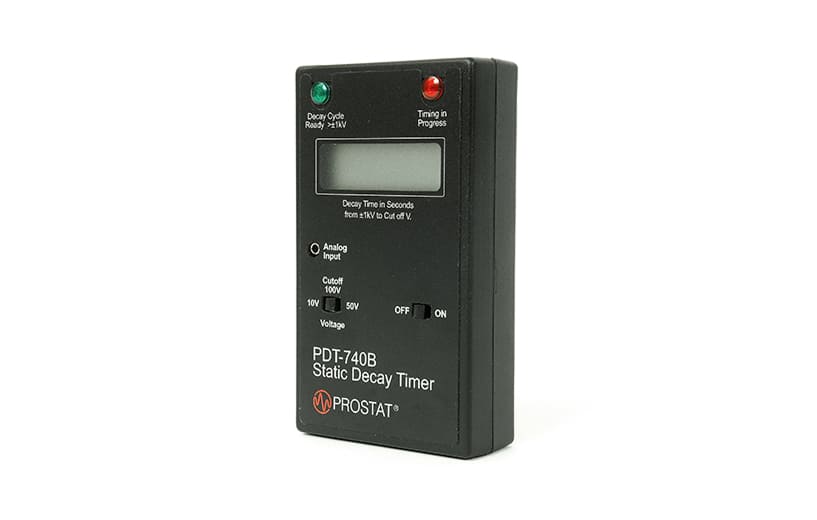

PDT-740B Static Decay Timer
Measure Decay Timer for Ionizers and Materials

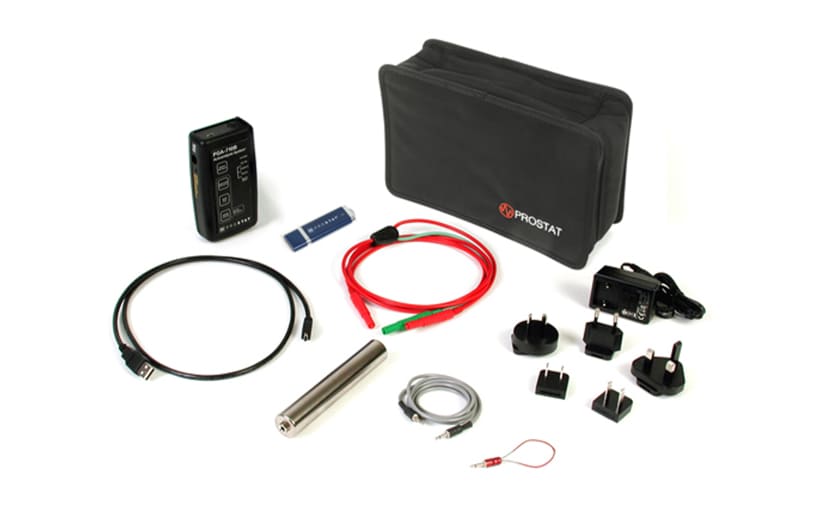

PGA-710B Autoanalysis System Set
Measure, Record, Analyze & Report Electrostatic Voltage Generation and Decay Performa

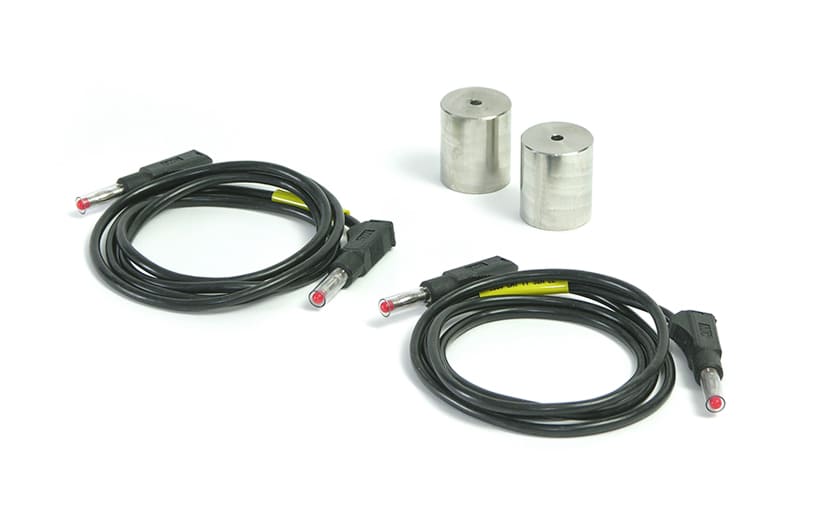

PGA-745 Decay Time Accessory Set
Measure Charge Move Movement and Decay Time Across Material
