PRF-911

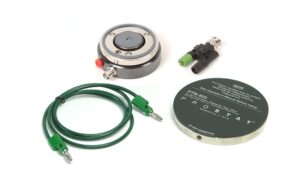

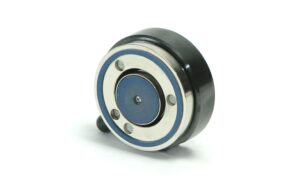

Concentric Ring Probe Set
PRF-911_1PRF-911_1
PRF-911_2PRF-911_2
PRF-911_3PRF-911_3
ESD 제어에 사용되는 모든 재료의 평가를 위해 사용
평면 재료의 표면 저항과 체적 저항 측정에 사용
모든 부품은 낱개 구매 가능

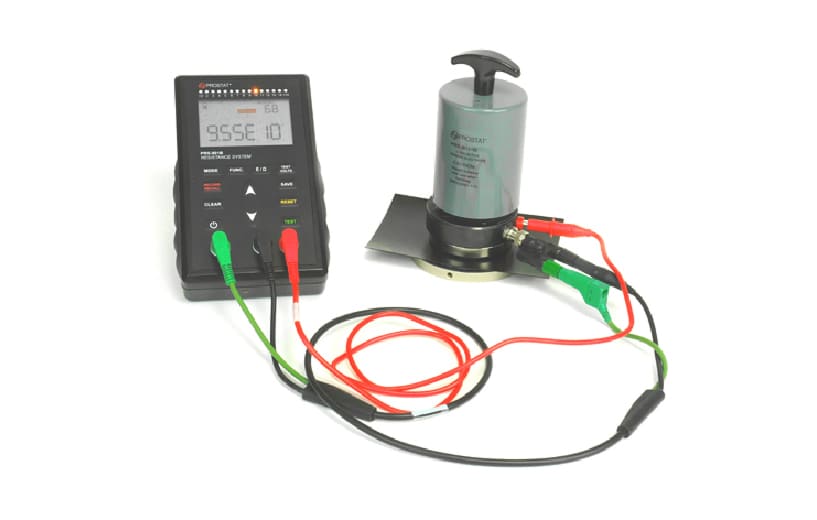

※ PRS-801-W와 함께 사용해야 함

video

FEATURES

BENEFITS

SPECIFICATION

Power
Not applicable. Fixture powered by resistance instrument.
Aligenment
5.0xE5± 1% Ohms @100 volts per ANSI/ESD STM11.11 for Surface Measurements
5.0xE5 ± 2% Ohms @10 volts
5.0xE5 ± 1% Ohms @100 volts for Volume Resistivity Measurement
5.0xE5 ± 2% Ohms @10 volts
Connections
Fixture installed BNC for Inner Disc (D1) connection, and fixture assembly ground;
dual BNC/Banana plug adapter supplied. Fixture installed standard banana receptacle for Outer Ring (D2) connection.
Dimensions
Inner electrode disc (D1) outside diameter: 1.2 inches (3.05cm) Spring Loaded
counter pressure approximately 2 lb., ± 2 ounces (0.82 Kilograms, ± 0.06 kg)
Outer electrode ring (D2) inside diameter: 2.25 inches (5.72cm) Width 0.125 inches (0.32cm)
