Resistance Probe

scroll down

PRF-912B

Miniature Concentric Ring Set

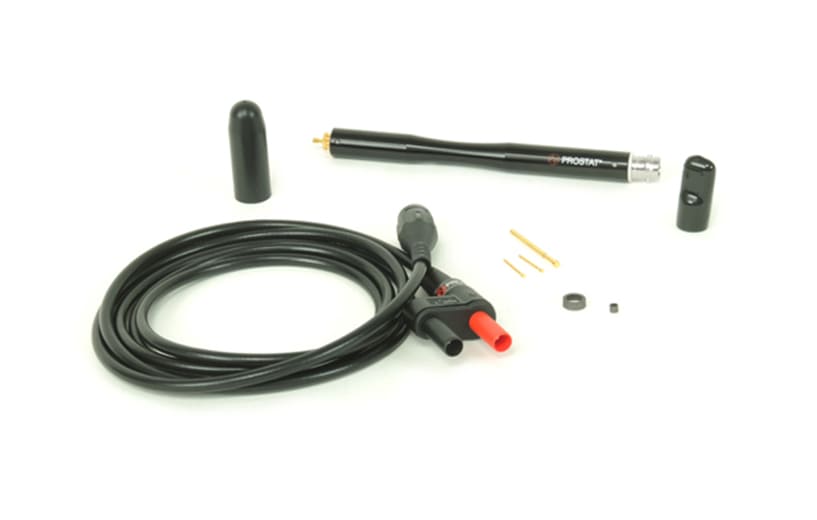

PRF-912B_1PRF-912B_1

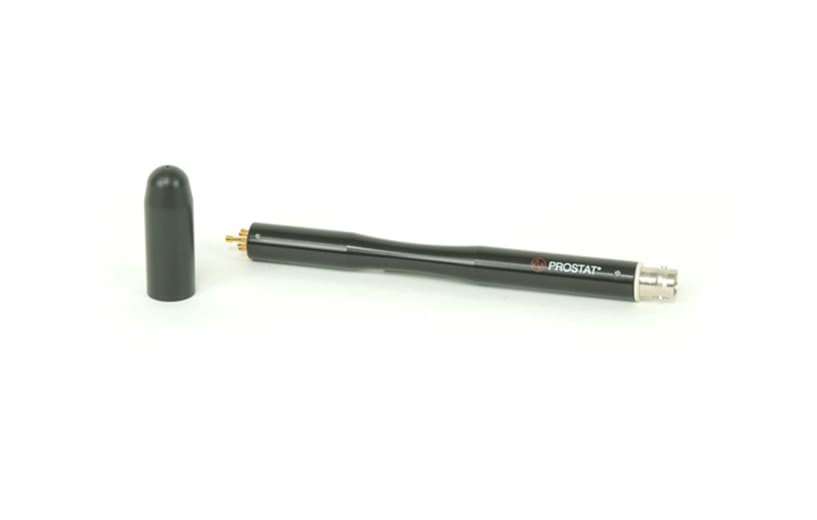

PRF-912B_2PRF-912B_2

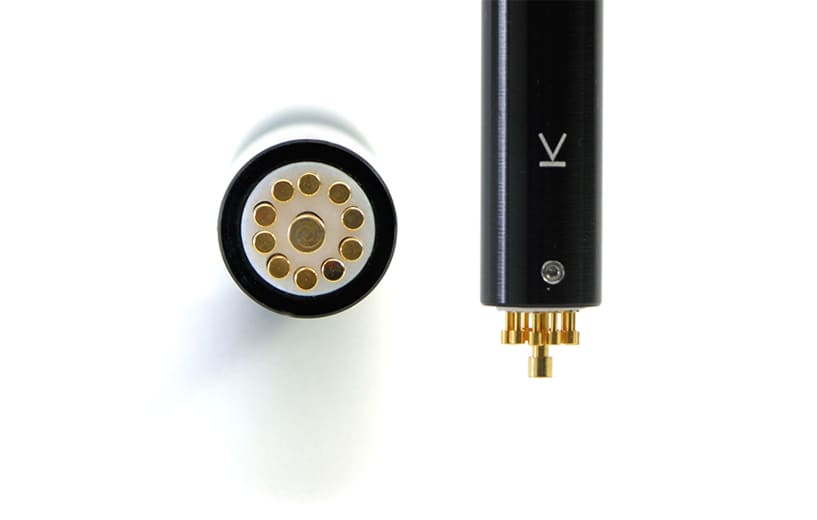

PRF-912B_3PRF-912B_3
PRS-801/812와 함께 사용 가능하며 PRF-911의 축소형 Probe 입니다.
모든 부품은 낱개 구매 가능

· 측정 범위: 0.1 ~ 1.0xE12 ohms
· 측정크기 : 0.35″ (8.89mm)

video

FEATURES

BENEFITS

SPECIFICATION

Range
0.1 ~ 1.0xE12 ohms
Power
resistance instrument.
Test Lead
RG-174 coaxial cable equipped with insulated BNC couplers, and BNC/Banana adapter for connection to Prostat PRS-801 Resistance System.
Connections
BNC with outer source and inner sense connections
Dimensions
Length: 5.9 inches (150mm) without probe cover. 6.5 inches (165mm) with probe cover.
Probe diameter 0.5 inches (12.7mm).
Probe cover outer diameter 0.63 inches (16mm).

제품 구성품
