PRF-922B

Miniature Two-Point Probe Set
PRF-922B_1PRF-922B_1
PRF-922B_2PRF-922B_2
PRF-922B_3PRF-922B_3
반도체 소자의 고집적화와 ESD 민감도 증가에 따른 접촉 저항 측정이 중요
JEDEC IC Tray 또는 Tweezers, 장비 내 Pick-up Nozzle 등의 저항 측정 가능
모든 부품은 낱개 구매 가능

· 측정 범위: 0.1 ~ 1.0xE12 ohms
· 측정크기 : 0.25″ (6.35mm)
· Compliance with ANSI/ESD STM11.13

video

Play Video

FEATURES

BENEFITS

SPECIFICATION

Range
0.9 ~ 1.0xE12 ohms
Power
Not applicable. Fixture powered by resistance instrument.
Test Lead
RG-174 coaxial cable equipped with insulated BNC couplers, and BNC/Banana adapter for connection to Prostat PRS-801 Resistance System.
Connections
BNC with outer source and inner sense connections
Contact Size

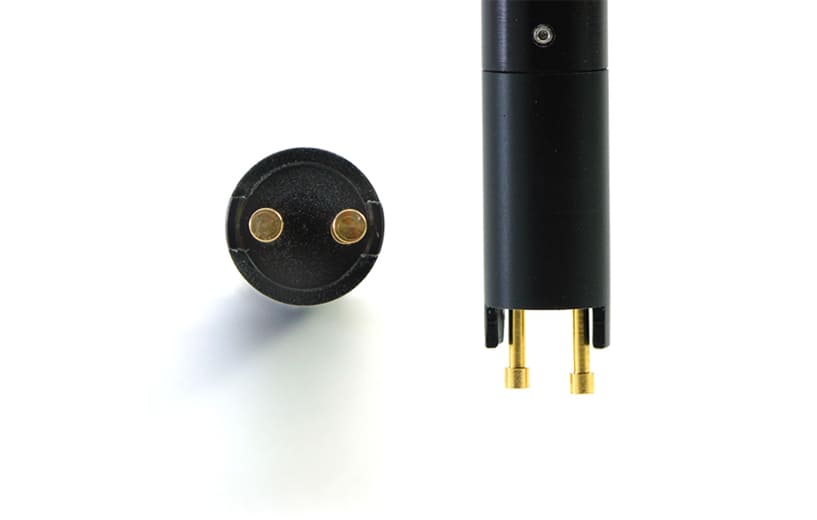

Electronic quality gold plated contact probes: 0.1-inch (2.54mm) diameter.
Conductive synthetic rubber contact boots: 0.125-inch (3.18mm) diameter.
Probes center-to-center spacing: 0.250 inch (6.35mm)
Dimensions

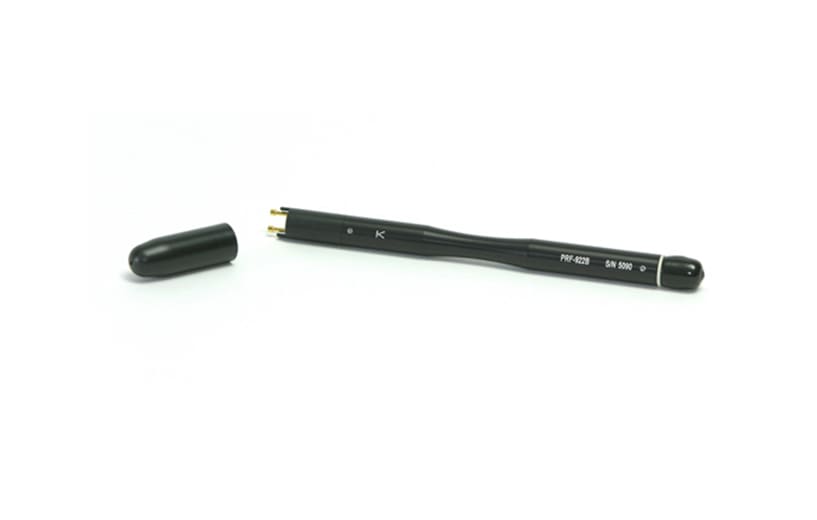

Length : 7.0 inches (178 mm) without probe cover.
7.70 inches (195mm) with probe cover.
Probe diameter 0.5 inches (12.7mm).
Probe cover outer diameter 0.63 inches (16mm).
