Resistance Probe

scroll down

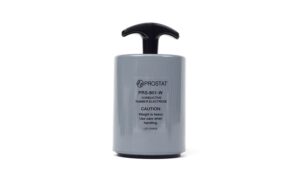

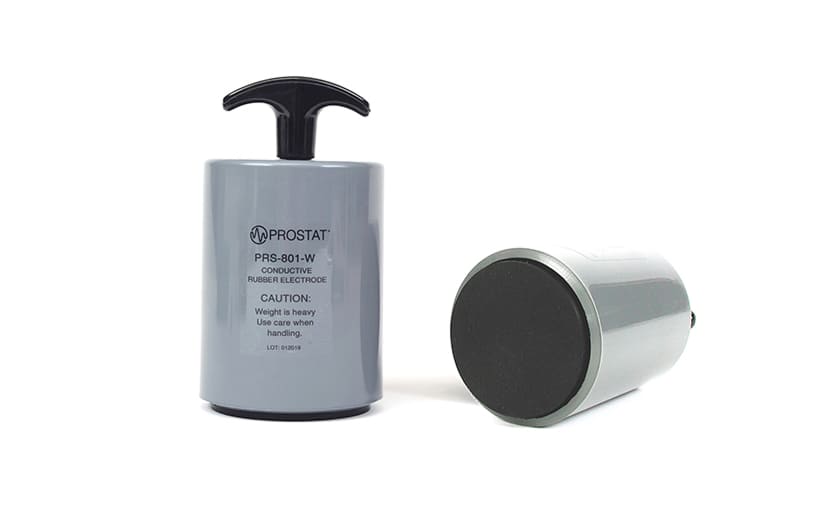

PRS-801-W

5lb Conductive Rubber Electrode
PRS-801W_1PRS-801W_1
PRS-801W_2PRS-801W_2
PRS-801W_3PRS-801W_3

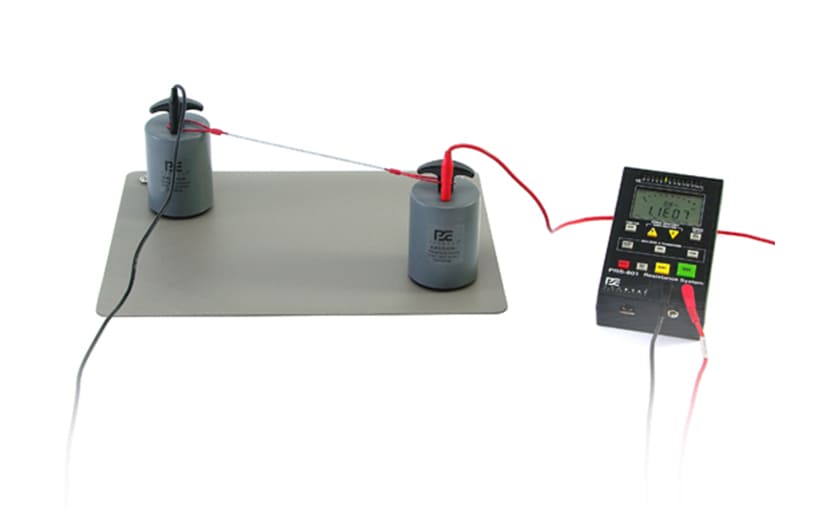

제전 바닥, 작업대, 제전의자, 대차 및 선반의 측정용 전극
ANSI/ESD S20.20 요구 사항에 부합하는 측정 관리
모든 부품은 낱개 구매 가능
※ PRS-800CS와 함께 사용하면 더 정확한 측정 가능

· ESD 관리 및 측정에 사용되는 기본 전극
· 무게: 5lb (2.27kg) 개별 ± 2oz
· Compliance with ESD Association Standards

video

Play Video

FEATURES

BENEFITS

SPECIFICATION

Power
Not applicable. Fixture powered by resistance instrument.
Weight
5 lbs (2.27 kg) each ±2oz
Pad Material
Durometer hardness of 50-70.
Dimensions
Pad Contact Surface : 2.5 ± 0.1 inches (63.5 ± 0.25mm)
Height
– With Handle: 5.0 inches (127mm)
– Without Handle: 3.75 inches (95.25mm)
