SPECIFICATION
Input Voltage | 24 VDC, 10.6 W Max. |
Ion Emission | Steady-state DC Technology |
Balance | ＜±5 V |

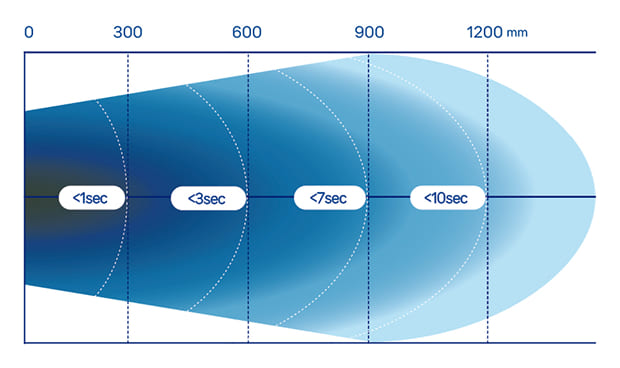

Discharge Time | ±1000 V to ±100 V less than 1 sec (30 cm)  |
Air Flow | 140 CFM |
Emitter Points | Tungsten 99.99% |
Alarm | Visual & Audio alarm operate for power failures and out of balance |
Monitoring | FMS monitoring interface |
Material | Enclosure & Filter Cover: ABS plastic Bracket: Aluminum |
Dimensions (mm) | 148W x 185H x 77D (without bracket) 188W x 205H x 77D (with bracket) |
Weight | 1kg (with bracket) |
Warranty | 2 year limited warranty |
