SPECIFICATION
PDS-510 HBM Discharge Simulator | |
Discharge Output | Adjustable up to 4kV |
Power Supply Output | Adjustable up to 4kV |
Power Supply Accuracy | ±2% |
Discharge Waveform (ANSI/ESD STM11.31) | Rise me @ 0Ω: < 10 nsec @ 500Ω: < 20 nsec Fall me @ 0Ω: 150±15 nsec @ 500Ω: 200±20 nsec Ringing: < 15% |
Power | Batteries: 4 each AA 2600 mAh low self-discharge, Rechargeable, Nickel-Metal Hydride Battery Power Supply: From 90 VAC to 264 VAC, 47 Hz to 63 Hz. UL and TUV 60950-1 approved |
Battery Life | ＞100 hours (with average of 50 discharges in 8 hours) |
Dimensions | (L x W x H) 7.5″ x 4.5″ x 2.5″ (19.05 x 11.43 x 6.35 cm) |
Weight | 2.0 lbs (907g) |
PBF-520 Shielded Bag Fixture | |
Base Material | Flame Retardant Polycarbonate |
Surface Resistivity | >1×1013Ω |
Discharge and Ground Electrodes | 1.5” (3.8 cm) brass, gold plated |
Capacitive Probe | 0.830” (2.1 cm) brass, gold plated |
High Voltage Resistor | 500 Ohms, 1% tolerance |
Support Area Surrounding the Ground Electrode | 8 x 10” (20 x 25 cm), without Base Extension attached 8 x 15” (20 x 35 cm), with Base Extension attached |
Dimensions | (L x W x H) 11” x 8” x 4” (27.94 x 20.32 x 10.16 cm), without Base Extension (L x W x H) 6” x 8” x 1” (15.24 x 20.32 x 2.54 cm), Base Extension |
Weight | 3.0 lbs (48 oz), without Base Extension 1.0 lbs (16 oz), Base Extension |

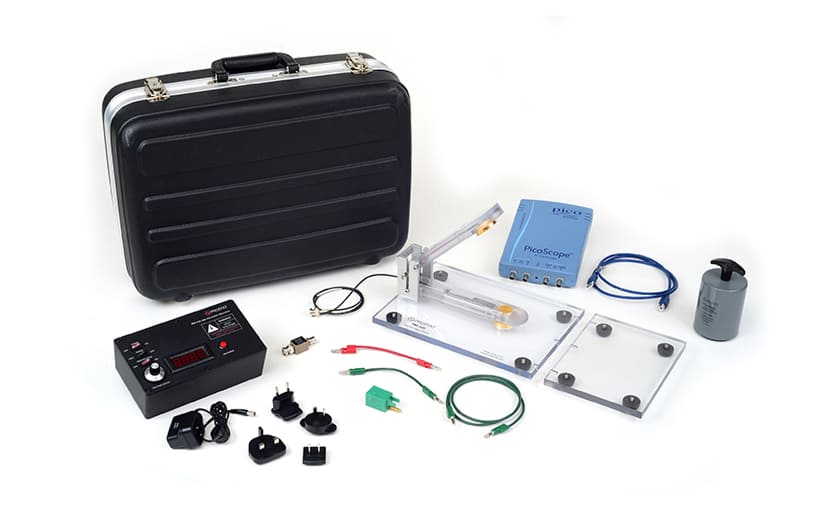

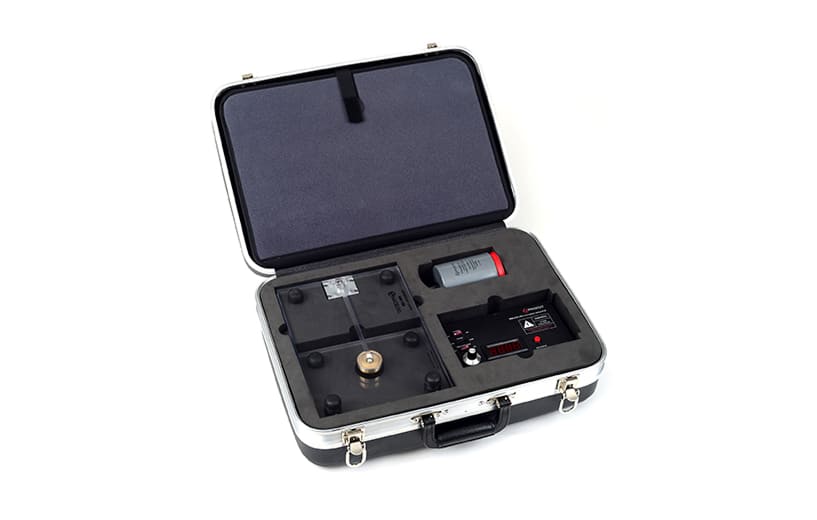

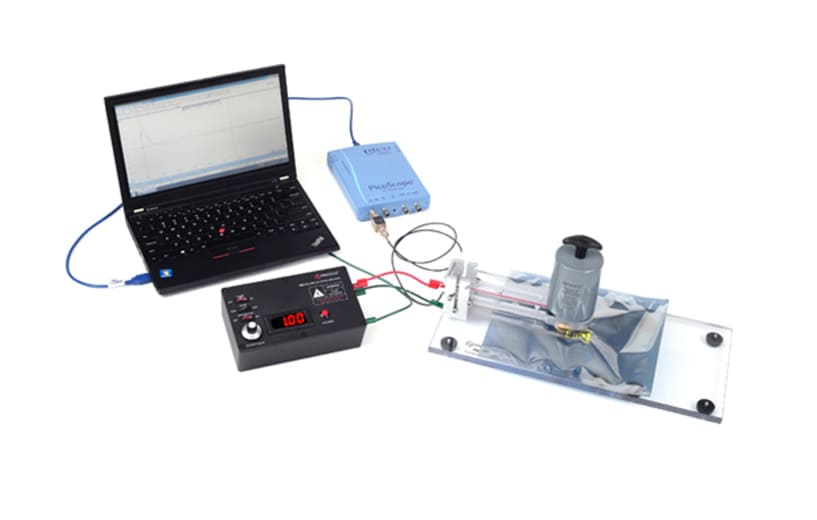

제품 구성품
- PDS-510 HBM Discharge Simulator
- PBF-520 Shield Bag Fixture
- Tektronix® CT1 Current Probe - Includes Attenuator
- PicoScope® Oscilloscope
