Model 2100

AirStat® Pulsed DC Bar Ionizer

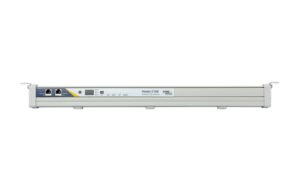

Model 2100-1Model 2100-1

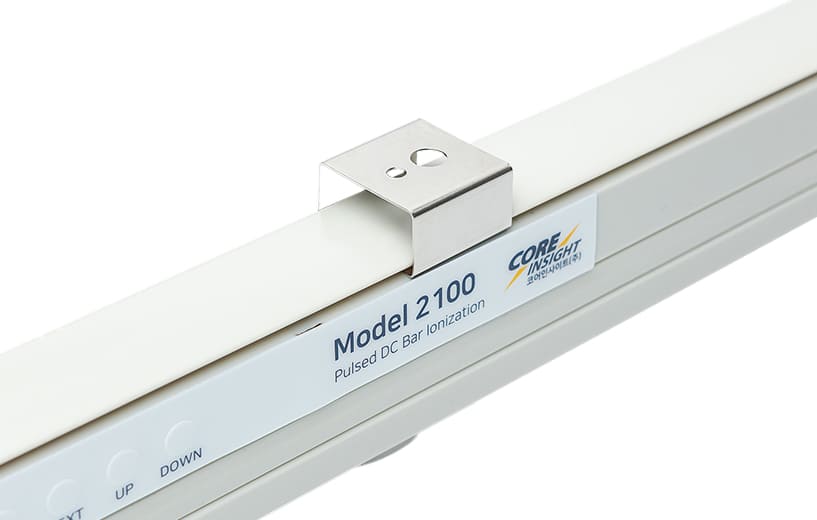

Model 2100-2Model 2100-2

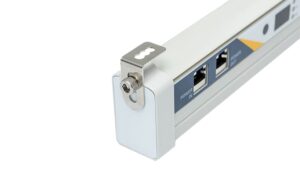

Model 2100-3Model 2100-3
코어인사이트의 AirStat® Pulsed DC 기술이 적용된 Model 2100은 CDA를 사용하지 않는 Bar 타입의 이오나이저 입니다. 클린룸 또는 장비 내부에 존재하는 기류를 통해 동작하기 때문에, 클린룸 내부의 기류 환경을 해치지 않으면서 최대의 효과를 내는 것이 특징입니다.
다양한 소재의 방천침을 선택할 수 있기 때문에 ISO Class 1 이하의 클린룸 및 청정 환경에 적용이 가능합니다.

설치 환경에 따라 최적화되어 제품이 작동할 수 있도록 출력 전압과 출력 시간 등의 세부적인 항목을 사용자가 제어할 수 있도록 설계되었습니다. LED를 통해 HVP, Cleaning 상태를 쉽게 확인할 수 있으며, 리모콘을 통한 원격 조정이 가능합니다.

video

Play Video

FEATURES

BENEFITS

SPECIFICATION

Input Voltage
24 VDC, 3 W Max.
Output Voltage
±7 k VDC, 100V Adjustment
Ion Emission
Pulsed DC Technology
Balance
Adjustable for each applications
Timing/Frequency
0.1-99.9 sec for each polarity
0.1 sec resolution adjustment
Display
3 digit FND display
Control
High voltage output and timing adjustment for each polarity
Emitter Points
Silicon Emitter compatible to ISO 14644-1 Class 1
Titanium Emitter compatible to ISO 14644-1 Class 3
Alarm
Visual (LED): clean, HVP fail alarm
Audio (Buzzer): HVP fail, cleaning
Monitoring
RJ-45 monitoring interface
Material
Enclosure & Bracket: ABS plastic
Nozzle: Polycarbonate
Dimensions (mm)
124H x 50D x L (600, 700, 900, 1200, 1600, 2000)
Weight
1.2kg (1000mm legth)
Warranty
1 year limited warranty
