SPECIFICATION
Input Voltage | 24 VDC, 2 W Max. |
Ion Emission | Steady-state DC Technology |
Balance | Less than ±15 V peak |

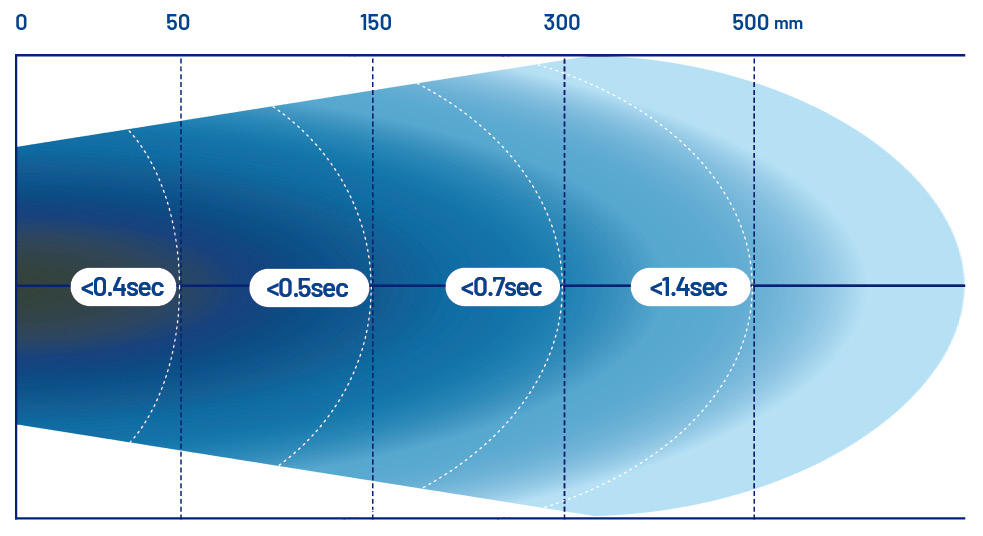

Discharge Time | Less than 2 sec with Single Crystal Silicon (0.3 Mpa / 15cm) Less than 1 sec with Tungsten Emitter (0.3 Mpa / 15cm) ![]() |
Emitter Points | Single Crystal Silicon or Tungsten emitter |
Alarm | Visual & Audio alarm operate for power failures |
Air Pressure | 0.1 – 0.5 Mpa |
Filter Efficiency | 99.99% at 0.1μm |
Air Inlet | 6mm Inlet |
Material | Enclosure: ABS plastic Nozzle: Teflon |

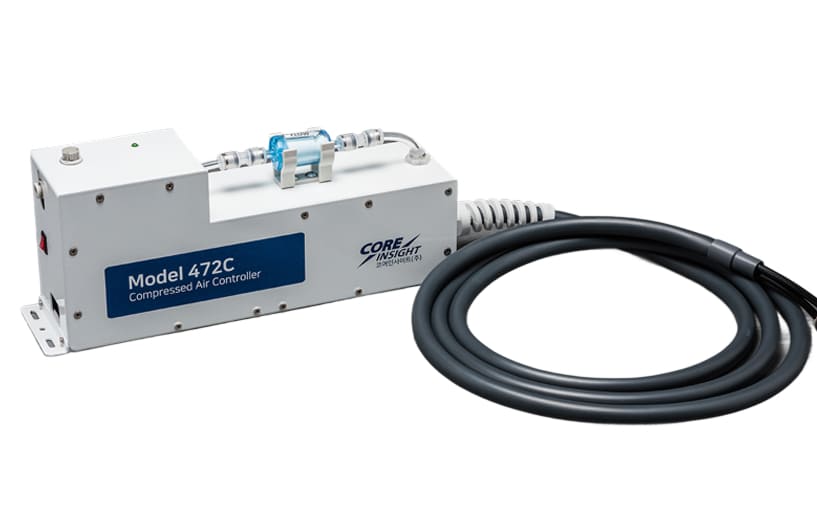

Dimensions (mm) | Model 472: 154W x 162H x 30D Model 472C: 420W x 125H x 80D |
Weight | Model 472: 210g Model 472C: 1.5kg |
Warranty | 1 year limited warranty |
