SPECIFICATION
Input Voltage | 24 VAC, 1.4 W Max. | Output Voltage | ±12 kV DC, 100 V resoultion adjustment |
Ion Emission | Pulsed DC Technology | Balance | Adjustable for each applications |

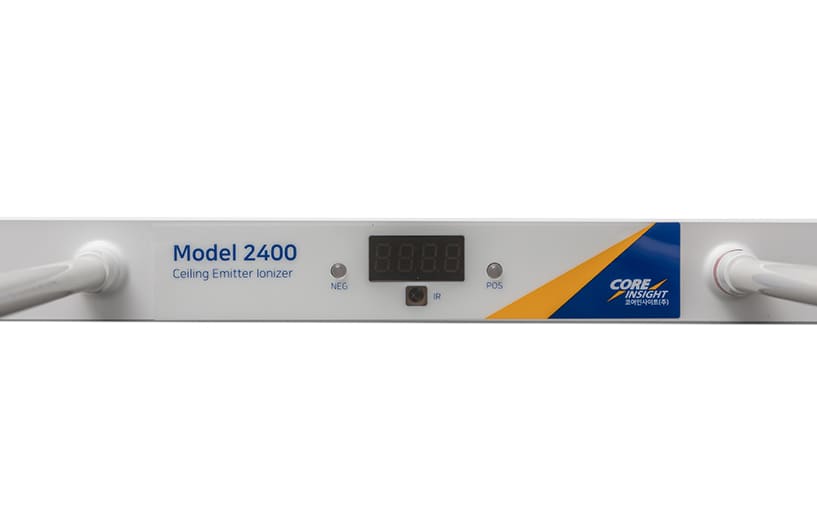

Display | 4 digit LED display | Control | Voltage, On time and Off time are adjusted by Model 5711R or Model 6300 series controller |
Timing | ON Time: 0.1 – 15.0 sec / 0.1 sec resolution adjustment OFF Time: 0.1 -10.0 sec / 0.1 sec resolution adjustment | Connectors | RJ-11 modular terminal |

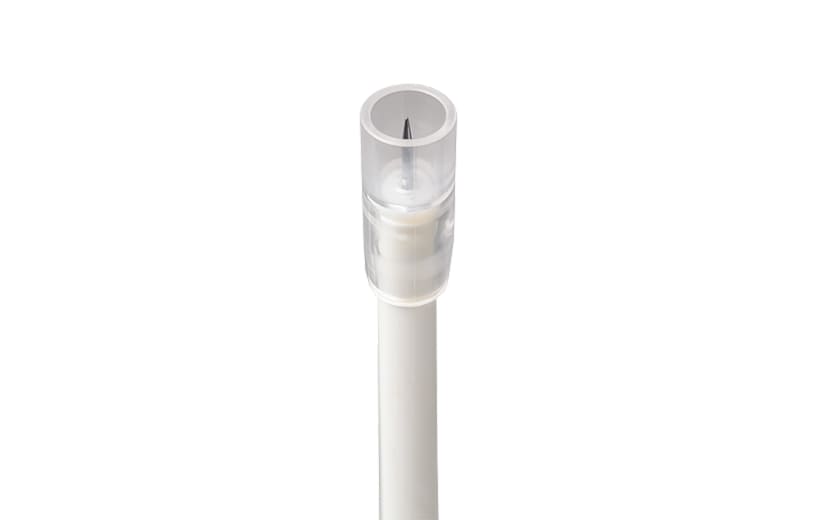

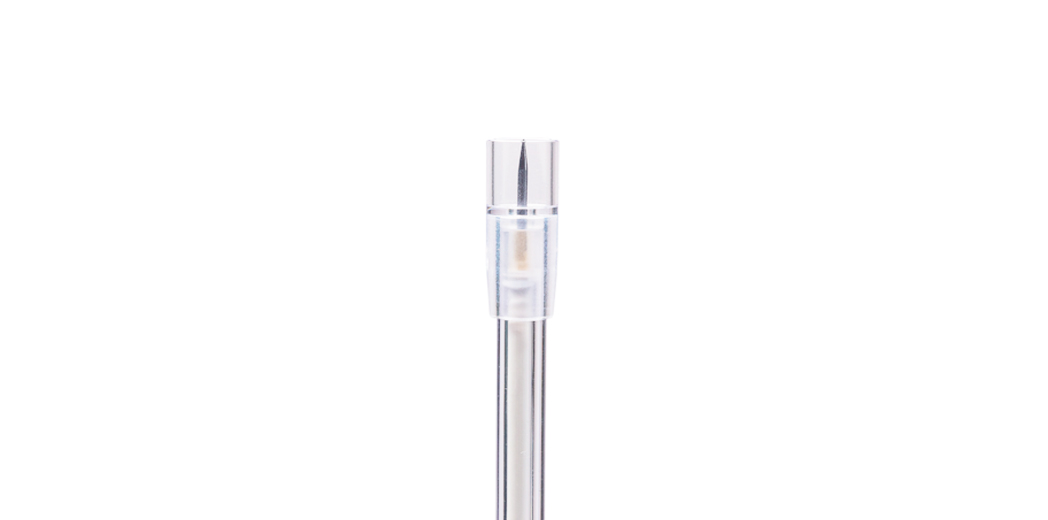

Emitter Points | Single Crystal Silicon or Titanium. All emitter points are replaceable | Cleanliness | Silicon Emitter compatible to ISO 14644-1 Class 1 Titanium Emitter compatible to ISO 14644-1 Class 3 |

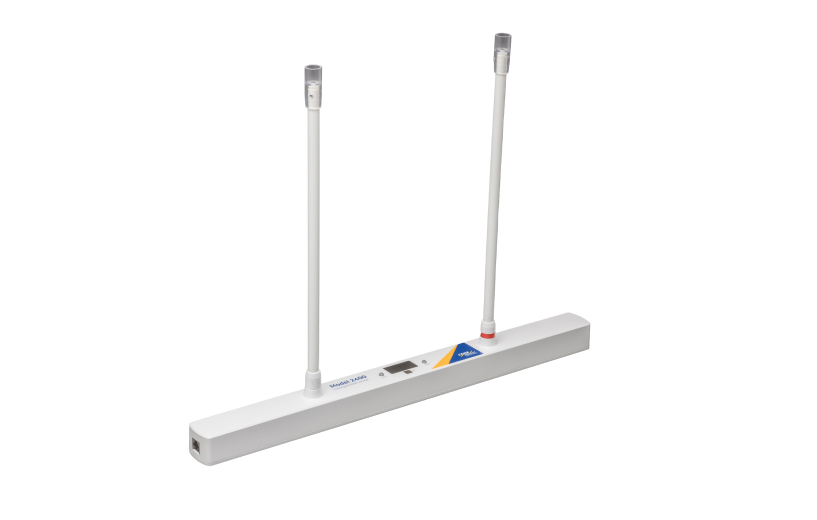

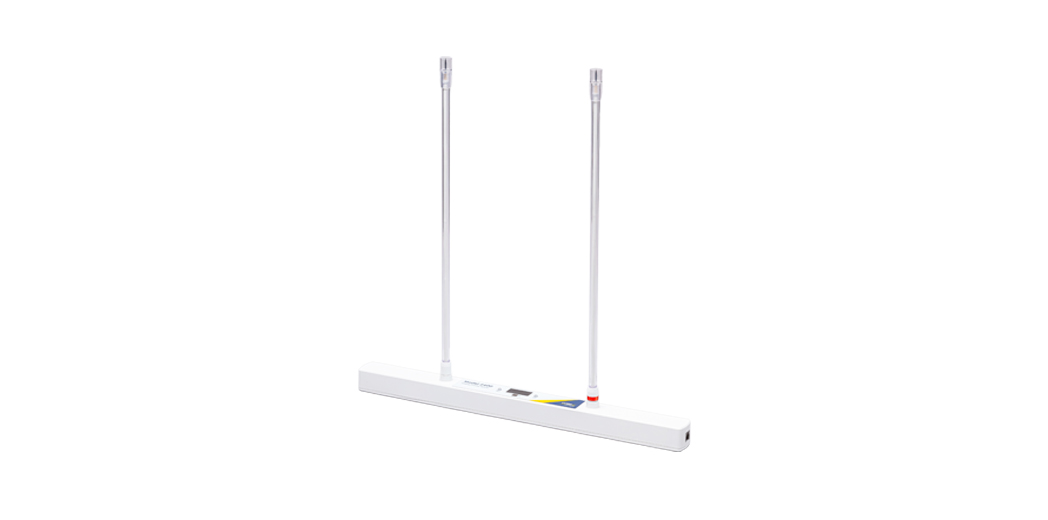

Emitter Rods | 150, 300, 450, 600, 750 and 900 mm. Custom length is available | Alarm | Visual & Audio alarm operate voltage feedback monitoring, cleaning cycle,
sync and polling failures |
Monitoring | RS-485 terminal on Model 6300 series controller (Max. 120 units) | Operation Mode | Pulsed DC, stand-by and individual ON/OFF control |
Operation Environment | Temperature: 15-35 °C, nominal Humidity: 20 -60% RH, non-condensing | Material | ABS plastic, Polycarbonate |
Dimensions (mm) | 450W x 30H x 36D | Weight | 410g (without rods) |
Warranty | 2 year limited warranty | ||
Related Products
- Emitter Points
- ㆍModel 5232ET
- Titanium Emitter
- ㆍModel 5233ES
- Single Crystal Silicon Emitter
- Controller
- ㆍModel 5711R
- Remote Controller
- ㆍModel 6300 Series
- Ceiling Emitter Controller
- Accessories
- ㆍModel 5239J
- Juction Box
- ㆍModel 5240
- Single Rod Assembly
- ㆍModel 5238S
- Rod Stabilizer
- ㆍModel 5711R
- IR Remote Control for Model 2400
Model 6300 Controller
- ㆍInput Voltage
- 100-240 VAC
- ㆍOutput Voltage
- 24 VAC
- ㆍModel 6320
- Capacity - Up to 20 units
- Dimensions - 240W x 102H x 137D (mm)
- Weight - 3.7kg
- ㆍModel 6340
- Capacity - Up to 40 units
- Dimensions - 240W x 102H x 137D (mm)
- Weight - 3.7kg
- ㆍModel 6380
- Capacity - Up to 120 units
- Dimensions - 375W x 121.5H x 137D (mm)
- Weight - 6.8kg
Part Numbers
- Size (mm) Part Number
- ㆍ150
- Model 2400-150-xx
- ㆍ300
- Model 2400-300-xx
- ㆍ450
- Model 2400-450-xx
- ㆍ600
- Model 2400-600-xx
- ㆍ750
- Model 2400-750-xx
- ㆍ900
- Model 2400-900-xx
- xx: user select emitter points materials
- ET: Titanum / ES: Silicon
