Model 360 Series

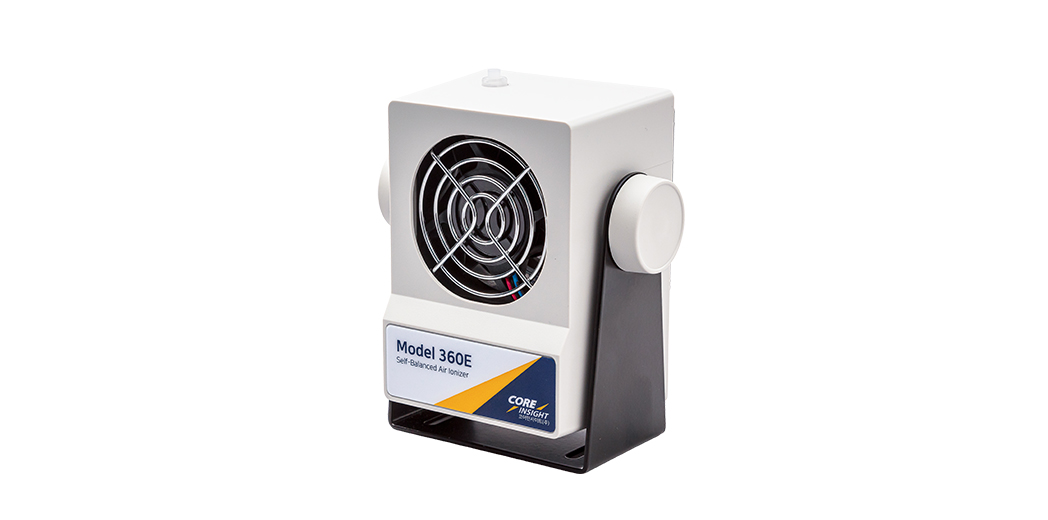

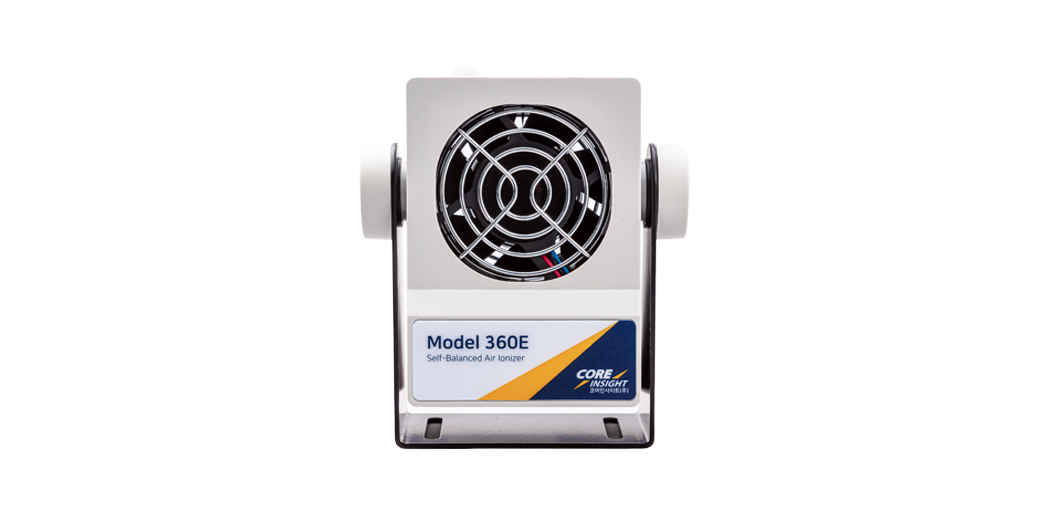

Model 360E

CoreStat® Self-balanced Air Ionizng Blower
Model 360E-1Model 360E-1
Model 360E-2Model 360E-2
Model 360E-3Model 360E-3
CoreStat® Steady-State DC Technology Blower Ionizer, Model 360E has designed to maintain at very low peak offset voltage and maintenance free for ultra sensitive device assembly process for AI and HPC applications. Advanced Package Device such as 2.5D or 3D IC devices and high-speed device are ultra sensitive below 100V CDM ESD level. Maintain low offset voltage is most important parameter for CDM control than just simply fast discharge.

Model 360E is designed with CoreStat® Self-Balanced Technology to maintain low offset voltage with no induction fields that can cause ESD damage from AC ionizers. CoreStat® technology does not requires grounding and its compact size allows it to be installed inside the process equipment and effective ESD control within the confined space of process equipment. Built-in ONE-TOUCH button allows auto-cleaning cycle in few seconds and back to normal operation. Very simple maintenance for emitter points and maintain ionizer performance. CoreStat® self-balanced technology is simply plug & play and no adjustment or no calibration required.

video

Play Video

FEATURES

BENEFITS

SPECIFICATION

Input Voltage
24 VDC, 4.8 W Max
Ion Emission
Steady-state DC Technology
Ion Balance
< ±5 V
Discharge Time
±1000 V to ±100 V less than 5 sec (30cm)
±1000 V to ±100 V less than 10 sec (60cm)
Air Flow
27 CFM
Alarm
Visual & Audio alarm operates when ionizer can not maintain balance limit and power failures.
Monitoring
FMS Interface
Operating Environment
Temperature: 15 – 35°C
Humidity: 35 – 75 % RH
Material
Enclosure & Filter Cover: ABS plastic
Bracket: Aluminum
Dimensions (mm)
80W x 110H x 64D (without bracket)
105W x 120H x 64D (with bracket)
Weight
340g (with bracket)
Warranty
2 year limited warranty
