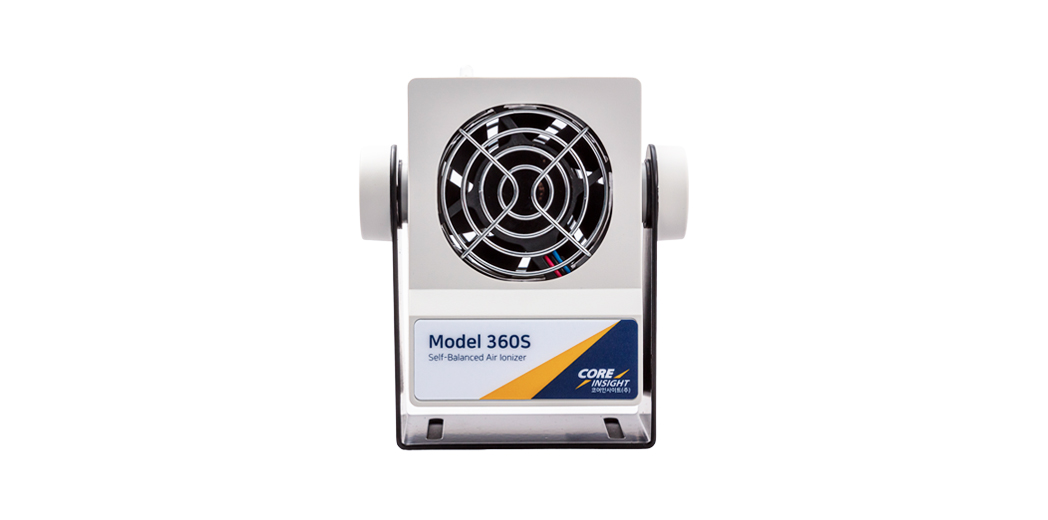

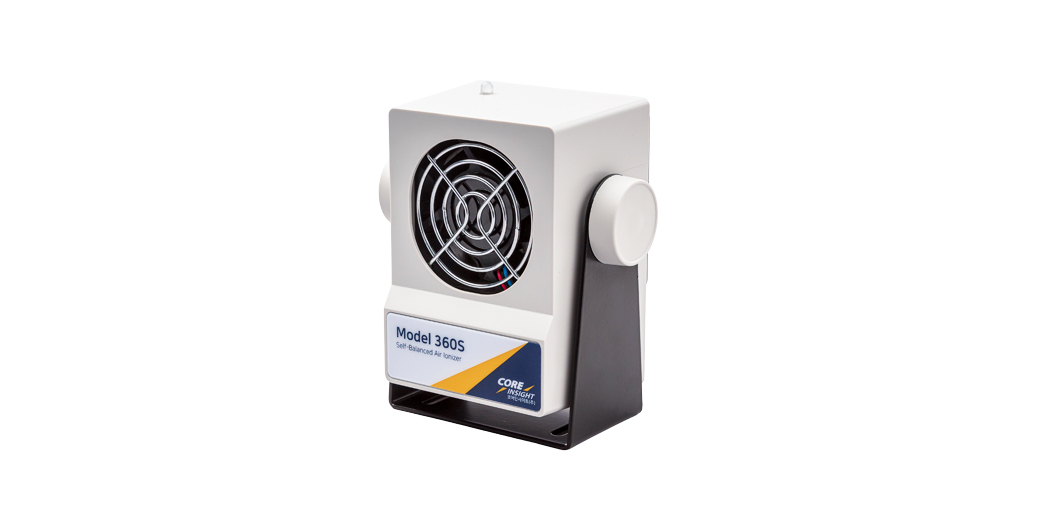

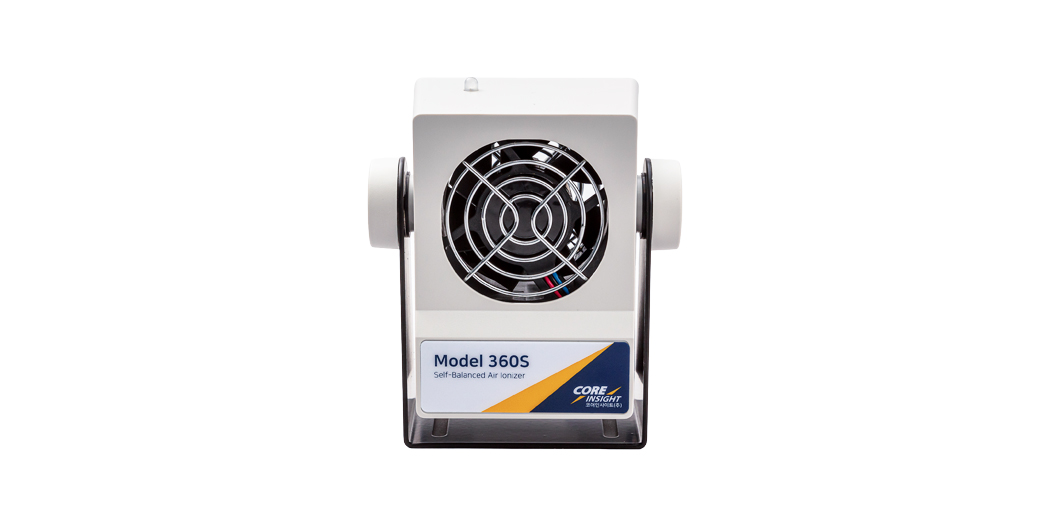

Model 360 Series

CoreStat® Self-balanced Air Ionizng Blower

CoreStat® Steady-State DC Technology Blower Ionizer, Model 360S has designed to maintain at low peak offset voltages and fast discharge capability application for ESD sensitive device assembly process for Semiconductor and PCB assembly line.

Model 360S is designed with CoreStat® Self-Balanced Technology to maintain low offset voltage with no induction fields that can cause ESD damage from AC ionizers. CoreStat® technology does not requires grounding and its compact size allows it to be installed inside the process equipment and effective ESD control within the confined space of process equipment. CoreStat® self-balanced technology is simply plug & play and no adjustment or no calibration required.

video

FEATURES

BENEFITS

SPECIFICATION


Input Voltage	24V DC, 4.8 W Max
Ion Emission	Steady-state DC Technology
Ion Balance	± 10 V Peak Offset Voltage
Discharge Time	Less than 3 seconds at 300 mm
Air Flow	34 CFM
Alarm	LED & audio alarms activate when balance limits cannot be maintained or when HV power failure occurs.
Monitoring	RJ-45 Terminal for FMS Interface
Operating Environment	Temperature: 15 – 35°C Humidity: 35 – 75 % RH
Material	Enclosure : ABS Plastic
Dimensions (mm)	80W x 110H x 64D (without Stand) 105W x 120H x 64D (with Stand)
Weight	340g (with Stand)
Warranty	2 year limited warranty
